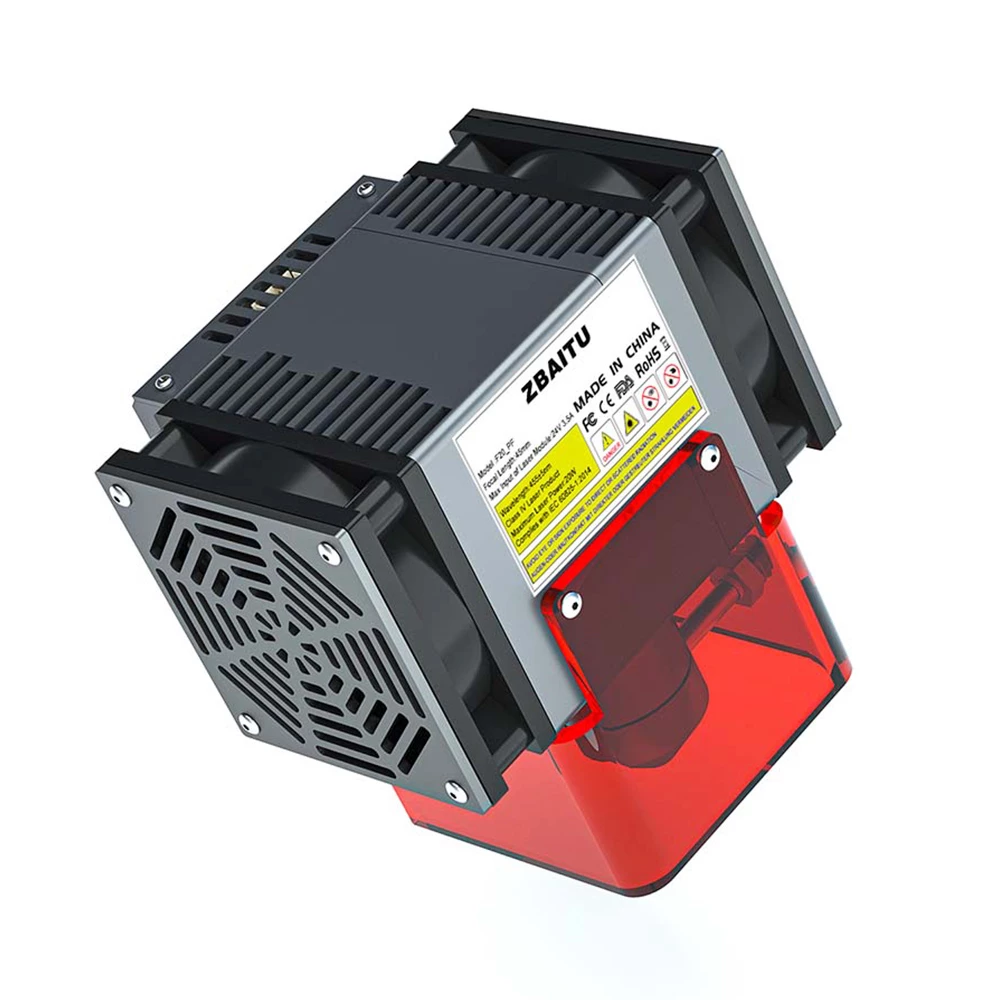

Budget 👍 ZBAITU F20-VF 20W Laser Module with Air Assist, Fixed-focus, 0.08×0.08mm Spot, 0.01mm Accuracy, Dual Fans 👏

Highlights

4-in-1 Diode High Energy and Faster Speed
With the latest generation of four 5W laser coupling technology, it is able to cut off 12-15mm thick plywood, the 8mm thick black acrylic board with only one pass, and even cut the 0.05mm thick stainless steel sheet.

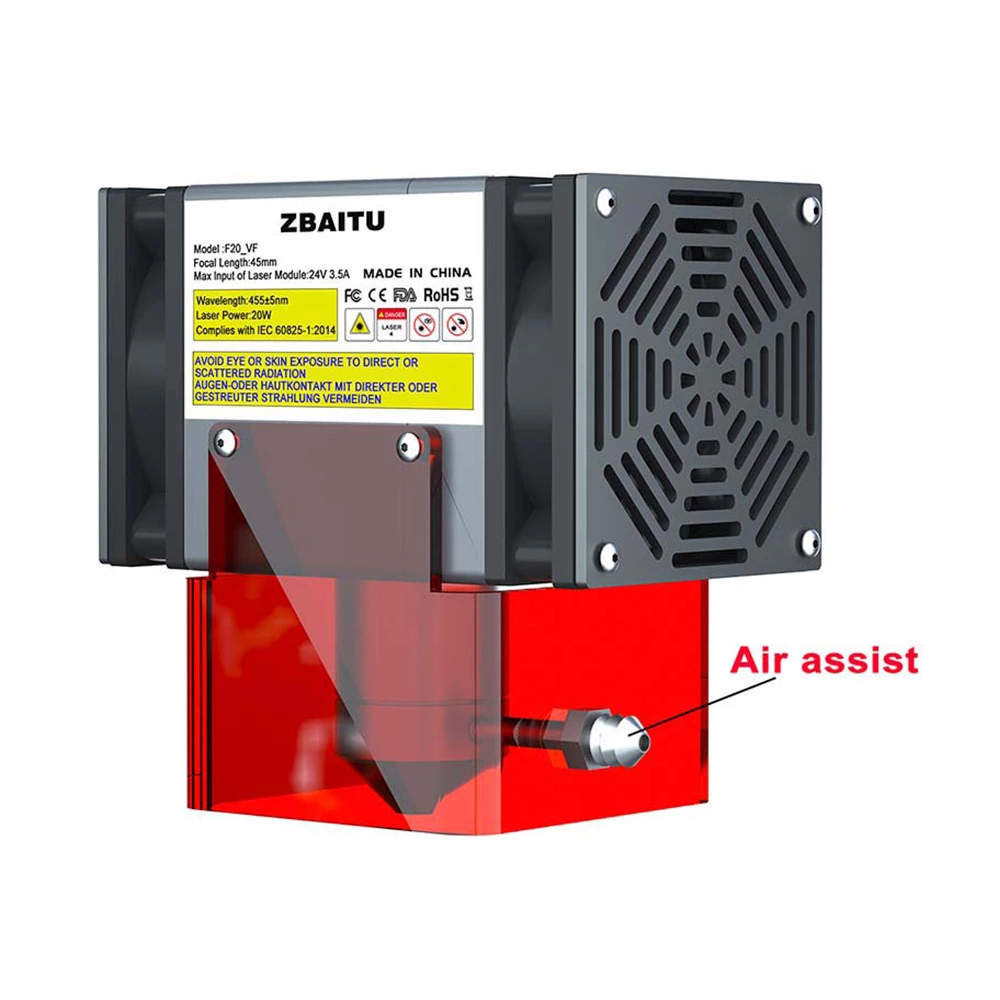

Updated Air Assist
The air intake has been increased from the original 3.5mm to 7mm, which can make the air intake meet the needs of cutting and engraving, and bring thinner cutting lines and faster cutting speed.

Fixed-focus Laser
No need to adjust the focus before engraving. The laser power of the fixed-focus laser is more stable than the zoom laser, and the focusing spot area is only 1/3 of other ordinary lasers.

Dual Fans
The double-sided fan can effectively reduce the temperature when the laser is working, protect the driver of the laser, and prolong the service life of the laser.

Strong Compatibility
The F20-VF laser module can be installed on any engraving machine model of ZBAITU laser engraver M37, M81, or A40, and it can be used without any additional settings.

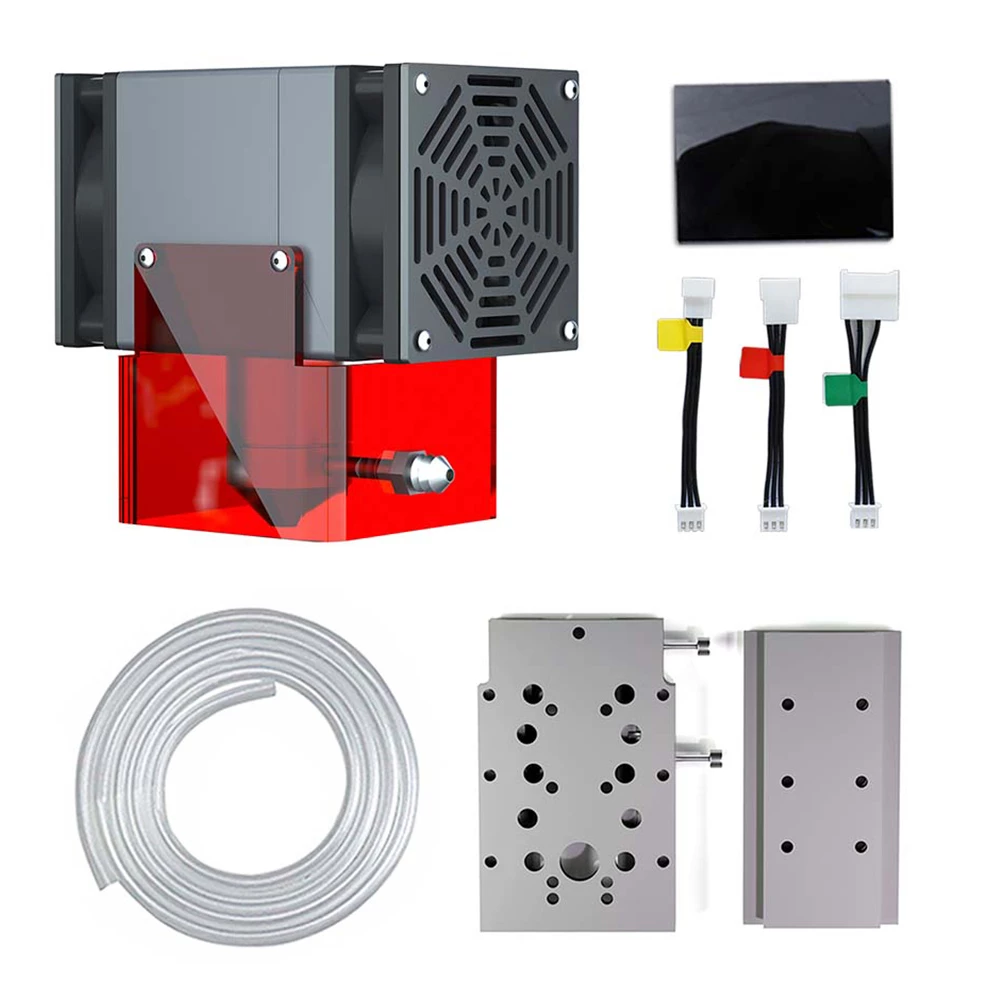

Comes with a 3 adapter cable in the box, this laser module is compatible with Ortur, NEJE, Two-Trees, Xtool, and Atomstack engraver as well.

Various Materials to Cut and Engrave
Engravable materials are including wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer, and lacquered metal, after blackening utility knife. Cuttable materials are including cardboard, non-woven fabric, veneer, acrylic, and some thin plastic board.

Specification

General	Brand: ZBAITU Type: Laser Module Model: F20-VF  Color: Black + Red
Specification	Optical Output Power: 20W Product Material: Aluminum 6061 Anode Circuit Board Size: 44x52mm Circuit Board: V/PWM Modulation Board Wire Rod: 22# 2P2.54 Terminal Reverse Wire 80mm Optical Lens: φ6/glass Fan: 24V Laser Beam Mode: Spot Working Mode: Pulse Work Light Spot Size: 0.08×0.08mm Wavelength: 445±5nm Engraving Accuracy: 0.01mm Working Time: 10000H Working Temperature: 0 – 70 Celsius Storage Temperature: -40 – 85 Celsius Sintering Temperature: 2000 – 2400 Celsius
Weight & Size	Product Weight: 358g Package Weight: 800g Product Size(L x W x H): 8x5x5cm Package Size(L x W x H): 18x15x7cm

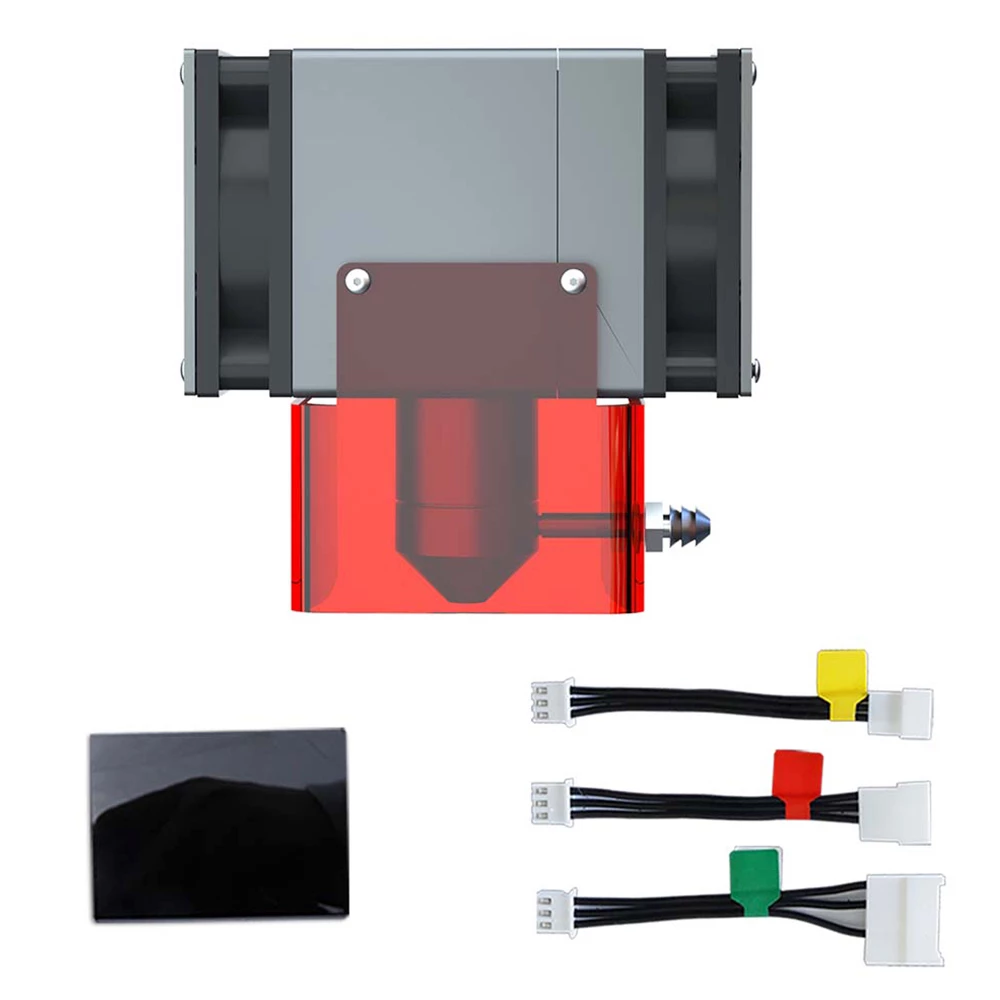

Package Contents	1 x 20W Laser Module Kit 1 x User Manual
