Best Pirce 💯 SCULPFUN S30 5W Laser Engraver Cutter, Automatic Air-assist, 0.06×0.06mm Laser Focus, 32-bit 👩 Motherboard, Replaceable Lens, 410x400mm, Expandable 935x905mm ❤️

Note

1. Because of the powerful laser power, it is forbidden to run the engraving machine without being supervised. Pause it if you’re not around.

2. For detailed machine instructions, please refer to the manual for parameter settings.

3. When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.

4. Do not touch the laser with your hands, otherwise, you may burn your hands.

5. Please avoid a strong impact on the machine.

6. It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult supervision.

7. Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.

Highlights

Automatically Controlled Air Assist System
The S30 series is equipped with an air-assist 32-bit motherboard and a control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8 button, this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.

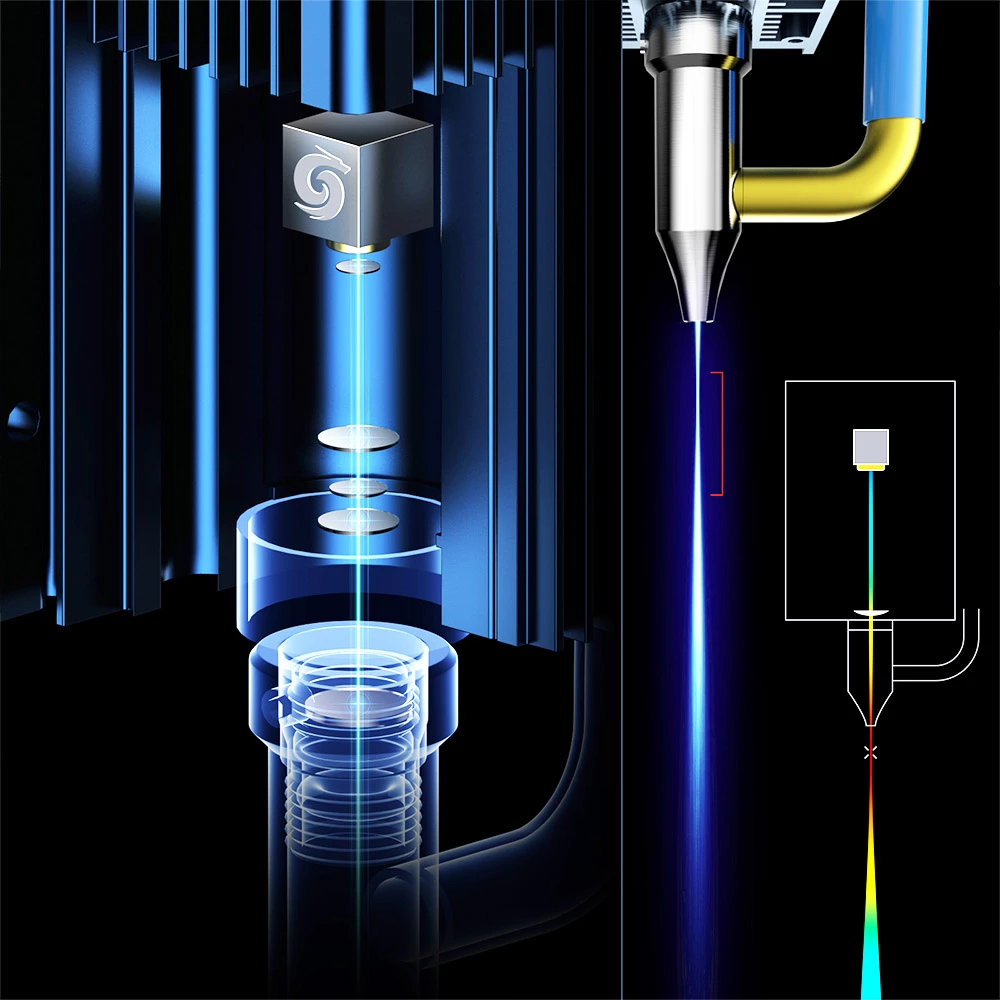

Built-in High-Pressure Air Assist Nozzle
S30 series is equipped with an advanced high-pressure air-assisted metal nozzle, which can generate 30L/min high-pressure airflow under the air pump, greatly improving the cutting efficiency, and the cutting speed is more than 5 times faster than that without air assist.

Ultra-thin 5W Laser
Adopting ultra-thin laser shaping technology, the laser focus of S30 is as thin as hairs and very powerful for engraving or cutting. The S30 5W laser is highly cost-effective and can meet 90% of hobby needs.

Replaceable Protective Lens
S30 series laser adopts an innovative replaceable lens, which greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore the cutting power.

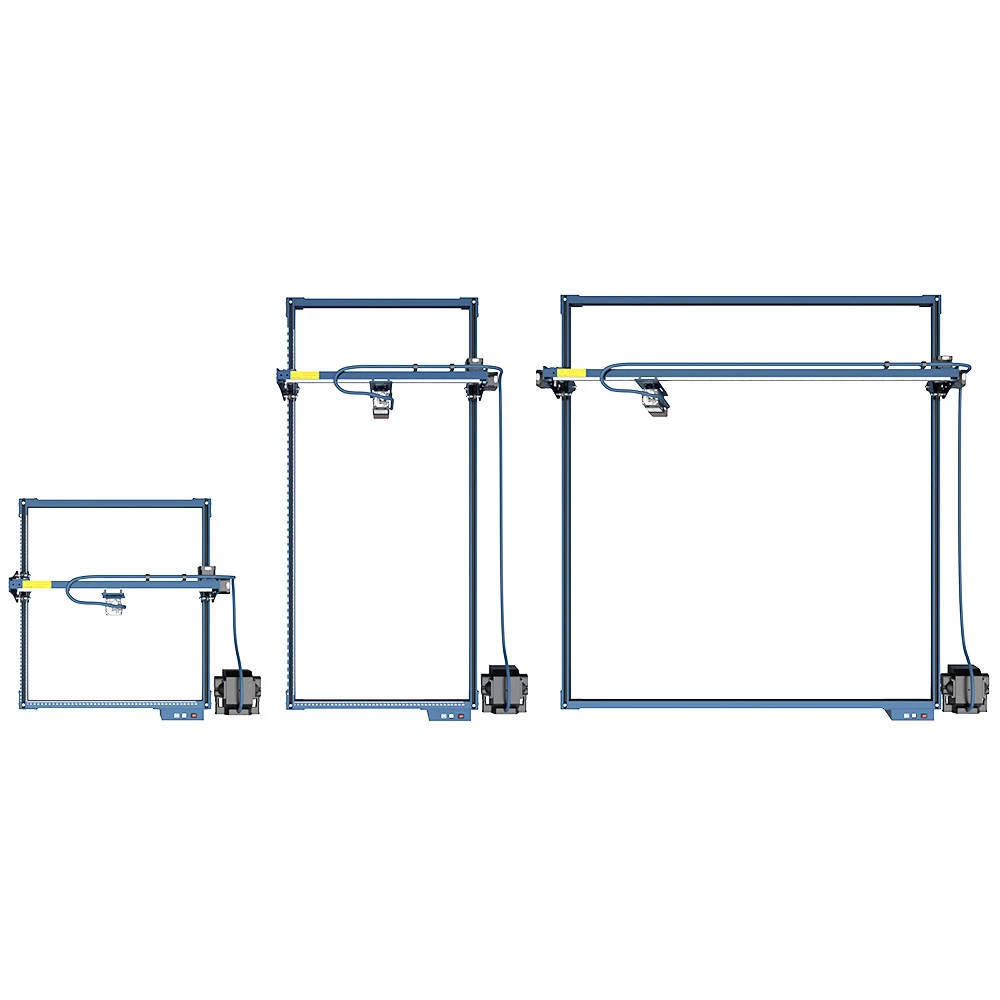

Expandable Engraving Area
The original engraving area is about 410x400mm, while it features XY-axis expandable design, so you can purchase a Y-axis expansion kit to expand the engraving area to 935x400mm; purchase an XY-axis expansion kit to upgrade up to 935x905mm engraving area, which can help you better handle large area engraving or cutting work.

Upgraded 32-bit Air-assist Motherboard
The latest 32-bit motherboard supports automatic air-assist control and reserves Bluetooth, and SD card offline printing function. (Upgrade Kit sold separately)

Industrial-grade Cutting Accuracy
Extremely solid and high-precision linear slide rail X-axis make it reach industrial-grade engraving accuracy. When comparing small engraving details, the S30 series does not have the wavy pattern that appears in ordinary engraving machines.

Sturdy and Durable Aluminum Alloy Frame
Made of high-strength aluminum alloy, its frame can bear up to 50KG weight without damage, and is very durable. The frame can be used for a long time and maintain high precision, only need to upgrade the latest laser when the machine needs to be upgraded.

Safety Design
The presented A4 size steel pad can well protect the table from laser damage. There is an eye-catching power switch on the machine, you can directly and quickly turn off the power in an emergency.

Right-angle Measuring Ruler
There are precise scale lines on the X-axis and Y-axis to form a right-angle measuring ruler, which is convenient for you to quickly measure the size of the engraved object.

Specification

General	Brand: SCULPFUN Type: Laser Engraving Machine Model: S30 5W Color: Blue
Specification	Laser Information: Diode Laser Output Power: 5W (note: that this is light energy, not electrical energy) Laser Focus: 0.06×0.06mm Laser Wavelength: 455±5nm Focusing Method: fixed focus column + sliding device Laser Protection Cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles Machine Information: Engraving Accuracy: 0.005mm Engraving Area Size: the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm Machine Power: about 60W Engraving Area After Installing the Limit Switch: S30: 380x385mm S30 Pro: 380x385mm S30 Pro Max: 370x363mm Air Pump: Type: mainboard-controlled air pump Voltage 12V Flow: 30L/min Air Hose Inner Diameter: 7.5mm Motherboard: 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately) Engraving Material: all kinds of wood (including walnut, cherry, and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone Cutting Material: all kinds of wood (including walnut, cherry, and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards Operating Software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system Supported File Formats: NC, BMP, JPG, PNG, DXF, and other image formats Data Transmission Method: USB connection or Bluetooth wireless connection Power Input: 110V AC, 50/60HZ  Power Output: 12V 5A
Weight & Size	Product Weight: 6.7kg Package Weight: 14.5kg Product Size(L x W x H): 230*235*625mm Package Size(L x W x H): 250*480*650mm
Package Contents	1 x S30 Laser Engraver 1 x Laser Repair Kit 1 x 12V Automatic Air Pump 3 x A4 Size 3mm Wooden Board 2 x Limit Switch 1 x 12V 5A Power Adapter 1 x Power Cord 1 x USB Cable 1 x Air Tube 1 x Installation Tool Kit 1 x Laser Goggles 1 x A4 Metal Backing Plate Step 1-6 Install the Package 1 x X-axis Assembly 2 x X Profiles 2 x Y Profiles 1 x Control Box Assembly 3 x Support Feet 1 x User Manual
