Top 10 ✨ Phaetus Dragon Hotend Standard Flow Edition, 500 Celsius Degrees Temperature Resistance, For Normal FDM 3D Printers, Compatible with All Filaments, PLA, ABS, PETG, TPU, PP, PC, Nylon, PEEK, PEI and Composite Materials, Blue 🔥

Highlights

Printing hotend is the core hardware component of 3D printing equipment. A qualified printing hotend needs to meet the scientific flow rate ratio, so that the heat break will not blocked by material, and overall printing smoothly.In response to this demand, Phaetus has launched a new generation of 3D printing hotend “Dragon Hotend ”. Dragon Hotend is composed of Heat Block, Heat Sink and heat break , which are the best combination of hotend printing extrusion kit formed by R&D team after hundreds of tests and debugging!

Dragon Hotend is the Hotend of the new generation of 3D printing launched by Phaetus .It adopts full metal kit, the overall high temperature resistance can reach 500 Celsius degrees, Heat Break inner hole is smooth, the movement resistance is small, so that the filaments effectively melt, smooth outflow, without accumulation, blocking and other problems, to achieve a better 3D printing effect.

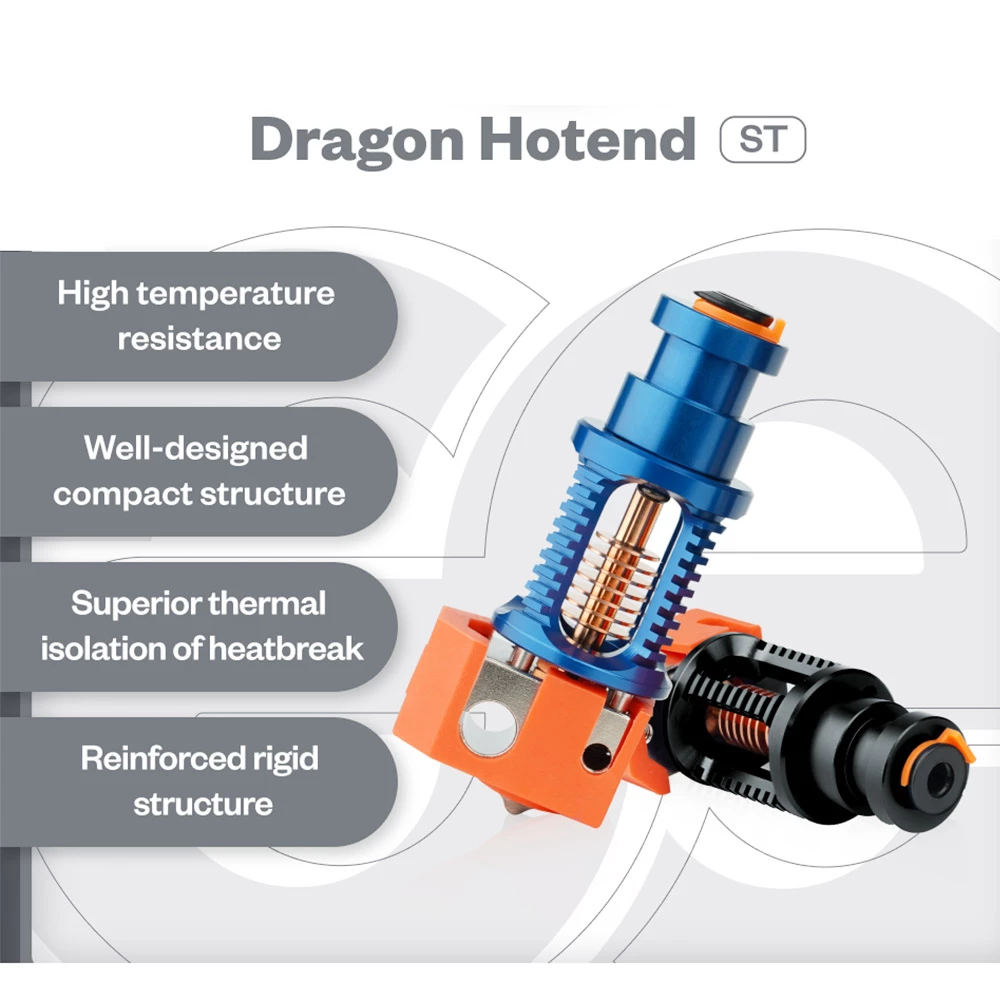

Well-designed compact structure

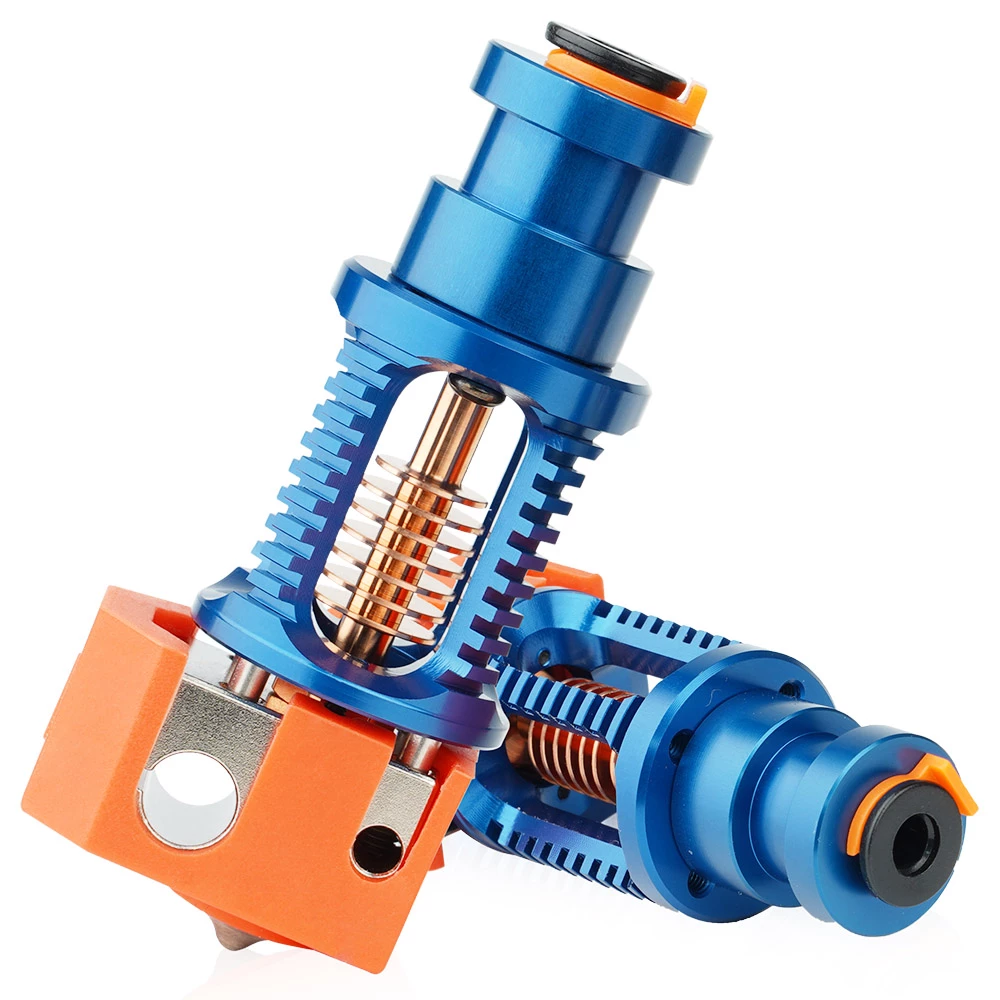

Dragon Hotend is composed of Heat Block, Heat Sink Heat Break with delicate structure and compact appearance

Superior thermal isolation of heat break

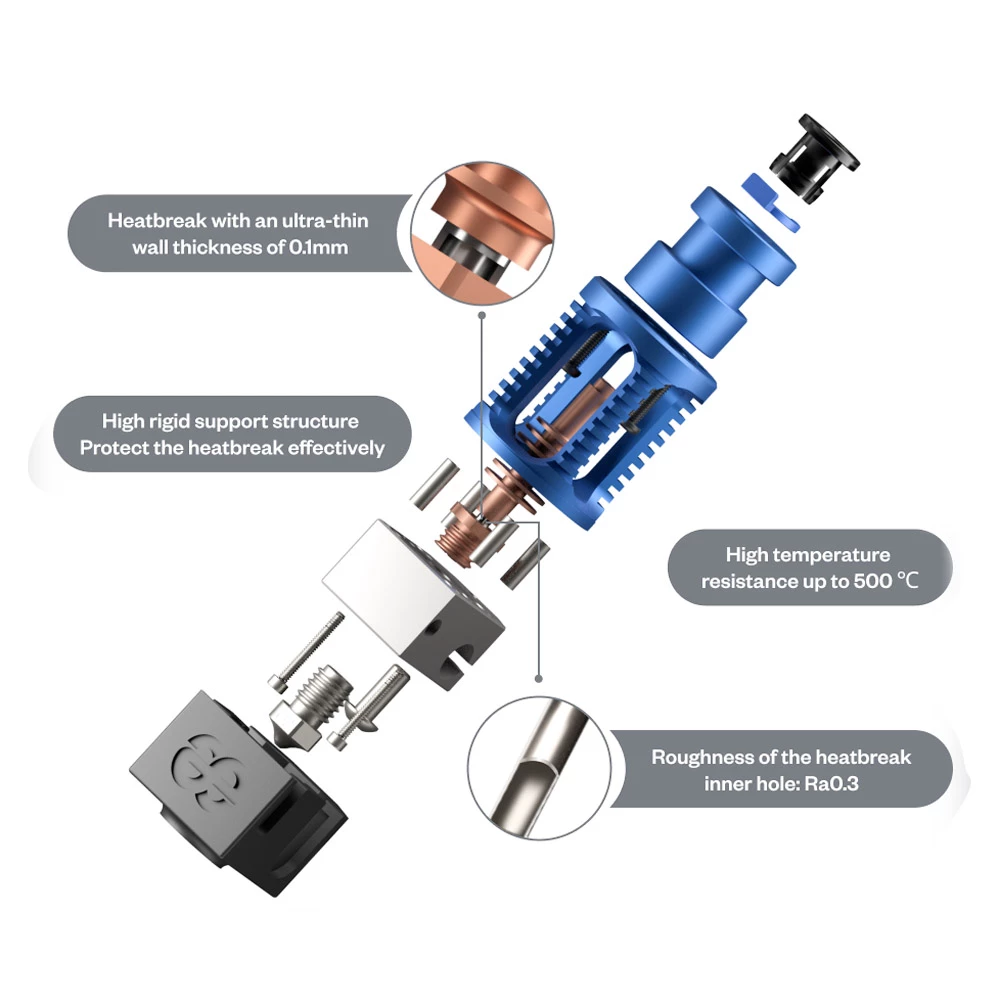

Heat break with an ultra-thin wall thickness as thin as 0.1mm, realizing an excellent thermal insulation.

High temperature resistance

The hotend is mainly composed of copper alloy material which has the advantage of faster heating and better heat dissipation. with overall high temperature resistance up to 500 Celsius degrees.

Reinforced rigid structure

Increased rigid support structure guarantee the heat break remaining intact under the impact of external force. Integral frame rigid structure makes nozzle replacement more convenient without grasping the heat block.

Specification

General	Brand: Phaetus Type: Extruder  Model: Dragon Hotend ST Color: Blue
Specification	Nozzle Diameter: Plated copper 0.4/1.75mm Applicable Materials: Compatible with all thermoplastic filaments, including but not limited to typical composite fiber filaments such as PLA, ABS, PETG, TPU, PP.PA, and PLA-CF, ABS-CF PETG-CF. PA-CF/GF, as well as composite filaments such as steel, wood, boron carbide, tungsten and fluorescence.
Weight & Size	Product Weight: 53g Package Weight: 220g Product Size(L x W x H):6.22×2.6×2.23cm Package Size(L x W x H): 6x8x3.3cm

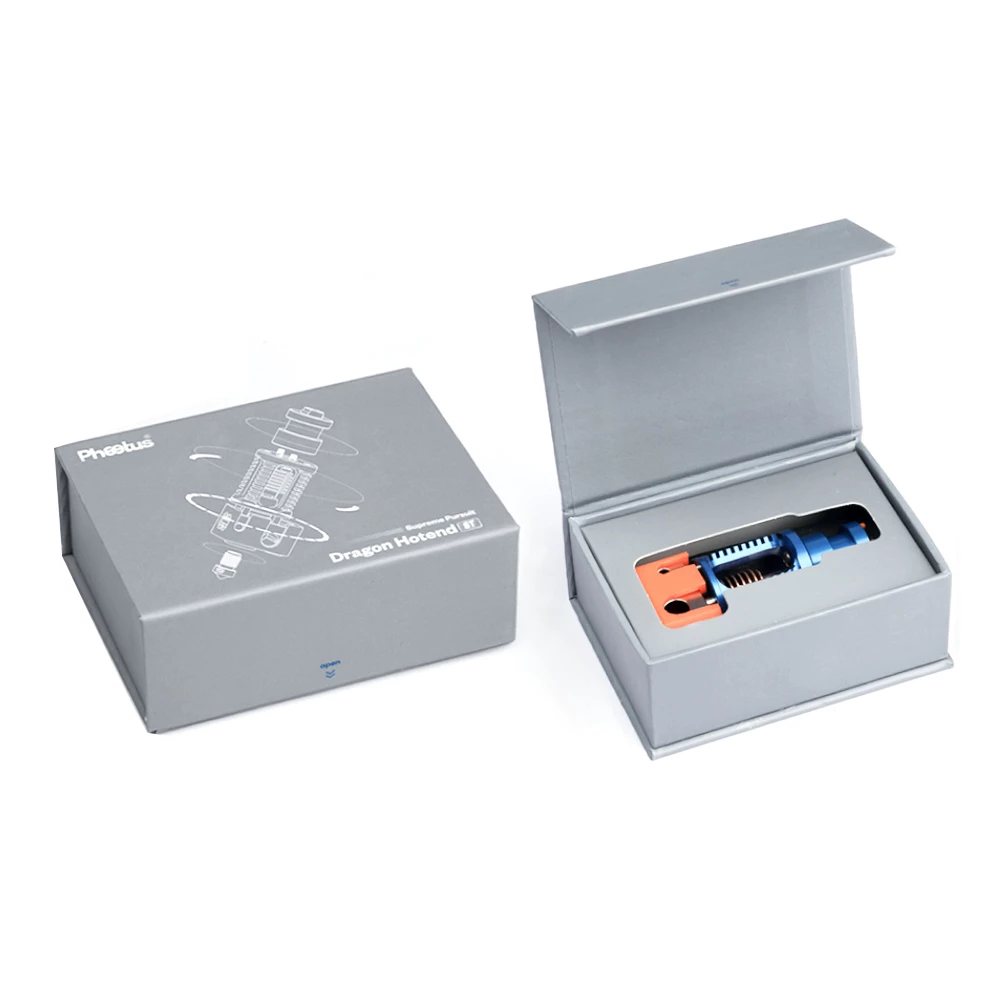

Package Contents	Hexagon bar (1.27/1.50/2.0 each) 7.8mm Open wrench x 1pc M2.5*8 Inner hexagon screws x 4pcs M1.4*5.5 Screws x 2pcs Collet clip x 1pc User Manual
