Top 10 🌟 NEJE A40640 Laser Module Kit with Air Assist, 10W Output Power, 0.04x0.06mm Focus Spot, FAC Tech 2 x Beam, TTL/PWM 450nm Blue Light 🤩

Top 10 🌟 NEJE A40640 Laser Module Kit with Air Assist, 10W Output Power, 0.04x0.06mm Focus Spot, FAC Tech 2 x Beam, TTL/PWM 450nm Blue Light 🤩 - Image 2

Top 10 🌟 NEJE A40640 Laser Module Kit with Air Assist, 10W Output Power, 0.04x0.06mm Focus Spot, FAC Tech 2 x Beam, TTL/PWM 450nm Blue Light 🤩 - Image 3

Top 10 🌟 NEJE A40640 Laser Module Kit with Air Assist, 10W Output Power, 0.04x0.06mm Focus Spot, FAC Tech 2 x Beam, TTL/PWM 450nm Blue Light 🤩 - Image 4

Top 10 🌟 NEJE A40640 Laser Module Kit with Air Assist, 10W Output Power, 0.04×0.06mm Focus Spot, FAC Tech 2 x Beam, TTL/PWM 450nm Blue Light 🤩

Original price was: $259.00.Current price is: $93.99.

SKU: 515961 Categories: Accessories, Laser Engravers & Cutters Tag: NEJE

Buy quality, buy with us.
Free 1 year warranty period
Service with a smile, always online.
Quick responses, top-notch service.

Description
Reviews (0)

Highlights

Professional Laser Module

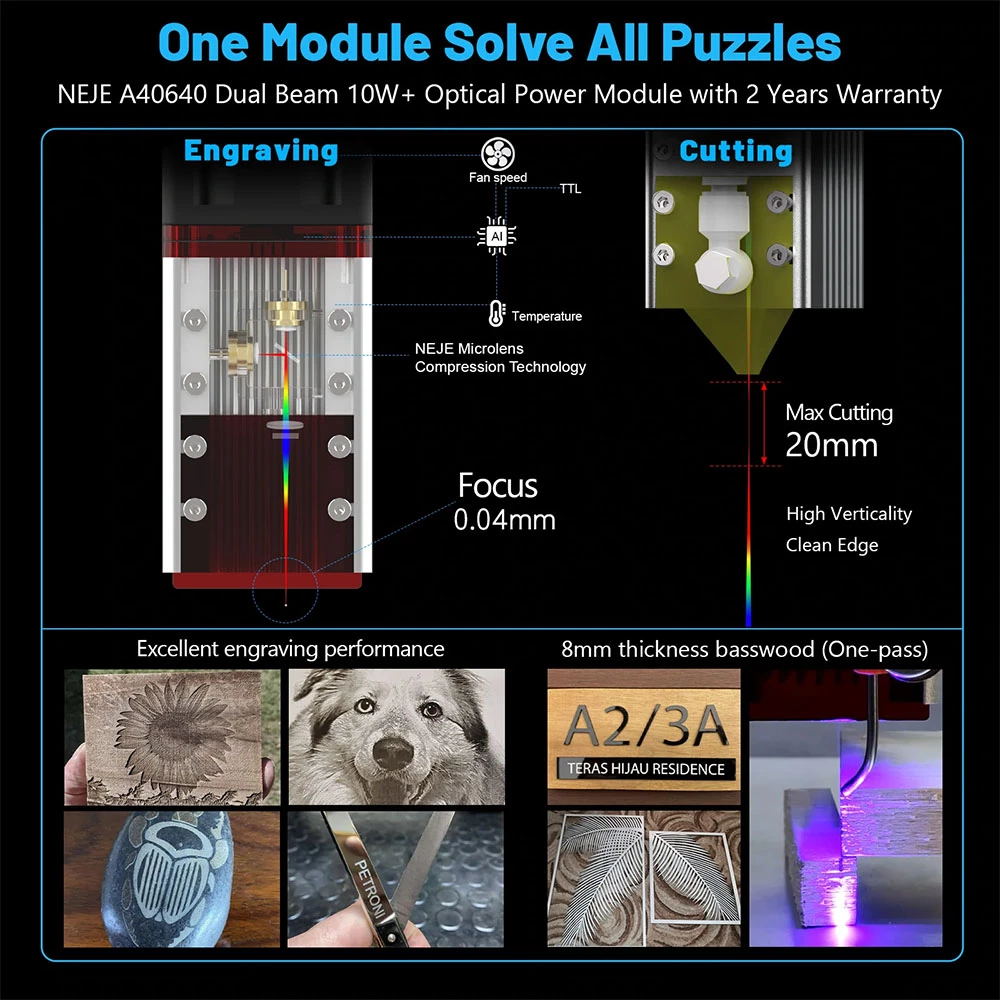

Features 10W optical power output, it can cut 4mm plywood by 1 pass (speed 200), and cut 3mm black acrylic board by 1 pass. Also, it’s able to engrave stainless steel, but it needs good focus adjustment.
Designed for Laser Engraver, 3D printer, CNC mill, and Arduino project.
More Safety
Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
Quieter
The intelligent drive adjusts the cooling fan speed according to laser temperature.
Easy to Use
Digital PWM wave pulse signal generator adjustable frequency duty cycle board is for NEJE laser module.

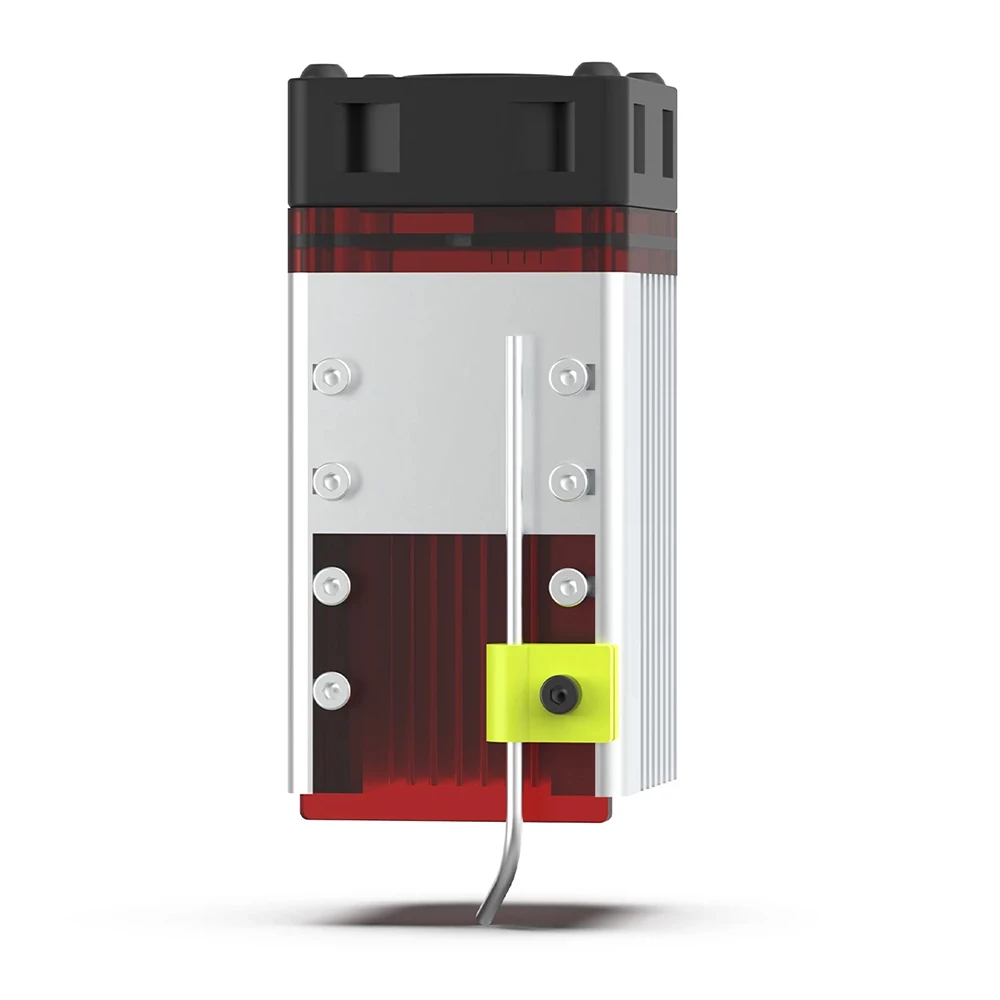

The slidable mounting fixture is provided for easy adjustment of focus.

NEJE A40640 Laser Module Kit with Air Assist, 10W Output Power, FAC Tech 2 x Beam, TTL/PWM 450nm Blue Light, Suitable for NEJE 3 Plus, Max, Pro Engraving Machine

Specification

General	Brand: NEJE Type: Laser Module Kit Model: A40640 Luminous Color: Blue
Specification	Heatsink Material: Aircraft Aluminum + Brass Shell Section Size: 40mm x 40mm Cooling Mode: Temperature sensor intelligent control + 10000 rpm 40mm cooling fan Adapter Plug: 5.5 2.1 port Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum Optical Power Output: 10W Wavelength: 445-450nm Beam Shape: Dot (Focusable) Working Voltage: DC 12V TTL&PWM Modulation: YES, Compatible with Both TTL & PWM Modulation Input Voltage: DC12V 3-4A PWM/TTL Input: DC3.3V-12V Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-) Drive Mode: External ACC Safe Temperature Range: < 60 Celsius Life Time: 10000-20,000 hours Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module Tester Board Specification: Power Input: DC 12V Output: PH2.0 4pin (12V,GND,PWM/TTL,Temperature) Mode: 3 modes (off, manual PWM, PWM / TTL in) Temperature Display: Yes PWM Display: Yes Manual PWM Control: Yes
Weight & Size	Product Weight: 202g Package Weight: 420g Product Size: 60x50x40mm Package Size(L x W x H): 360x160x110mm
Package Contents	1 x A40640 Laser Engraving Module 1 x Sliding Card Slot (affix the stable silicone pad and install the screw) 1 x Air Assist Kit 1 x Wire Package (Including: 1 x 4pin module cable, 1 x 3pin input cable, 1 x 2pin signal control cable) 1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable Board 1 x Interface Adapter Board 1 x Large Allen Key and Small Allen Key Installation Kit 1 x User Manual
