Cheapest 😀 NEJE 3 Pro A30130 5.5W Laser Engraver Cutter, Auto Air Assist, 0.04x0.04mm Focus, 0.01mm Accuracy, 1000mm/s, Engraving Size 400*410mm, Expandable to 400*1030mm 🔔

Cheapest 😀 NEJE 3 Pro A30130 5.5W Laser Engraver Cutter, Auto Air Assist, 0.04×0.04mm Focus, 0.01mm Accuracy, 1000mm/s, Engraving Size 400410mm, Expandable to 4001030mm 🔔

Original price was: $319.00.Current price is: $98.99.

SKU: 507645 Category: Laser Engravers & Cutters Tag: NEJE

Buy quality, buy with us.
Free 1 year warranty period
Service with a smile, always online.
Quick responses, top-notch service.

Description
Reviews (0)

Highlights

Professional and Advanced Engraving Equipment

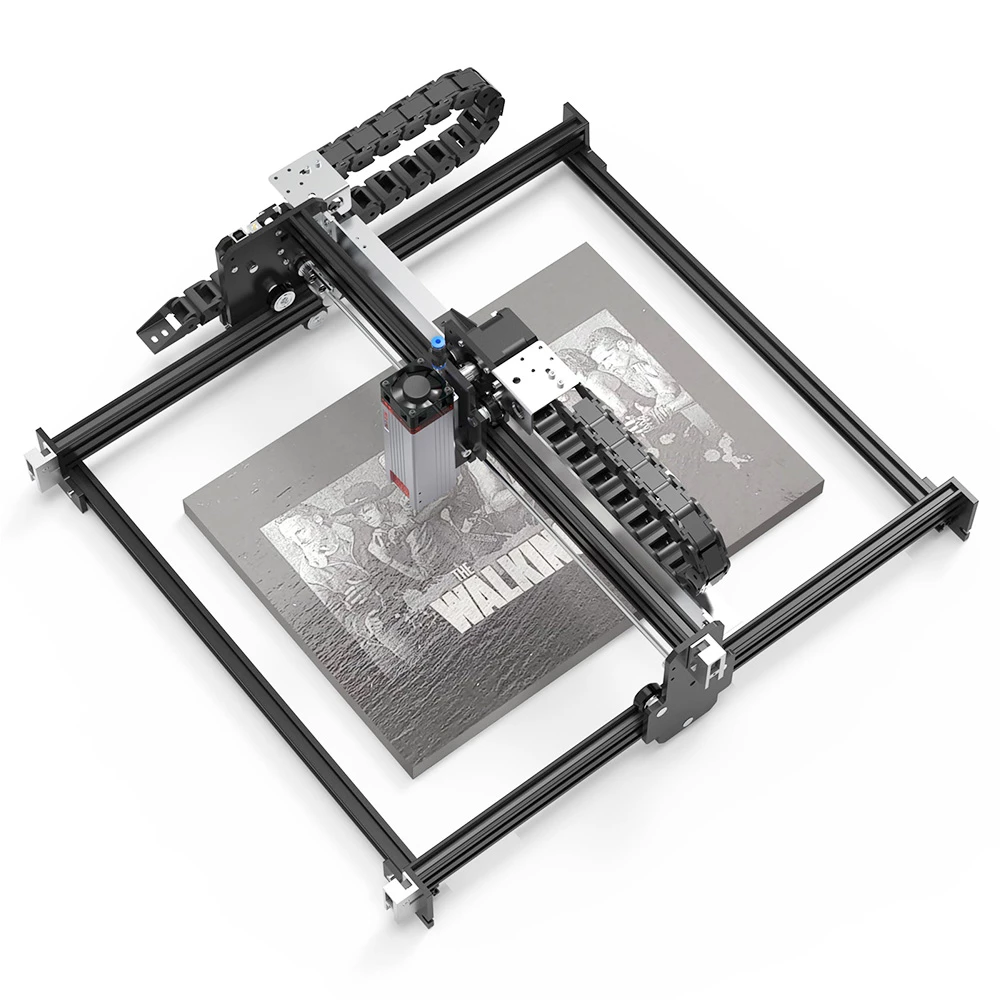

NEJE 3 Pro is a professional laser engraving and cutting equipment. The A30130 module laser cutter and engraver machine have 0.04×0.04mm focus, 5.5W+ CW, and 7.5W pulse output power. It also has PWM power modulation and a double-ball high-life fan.
Large Engraving Area

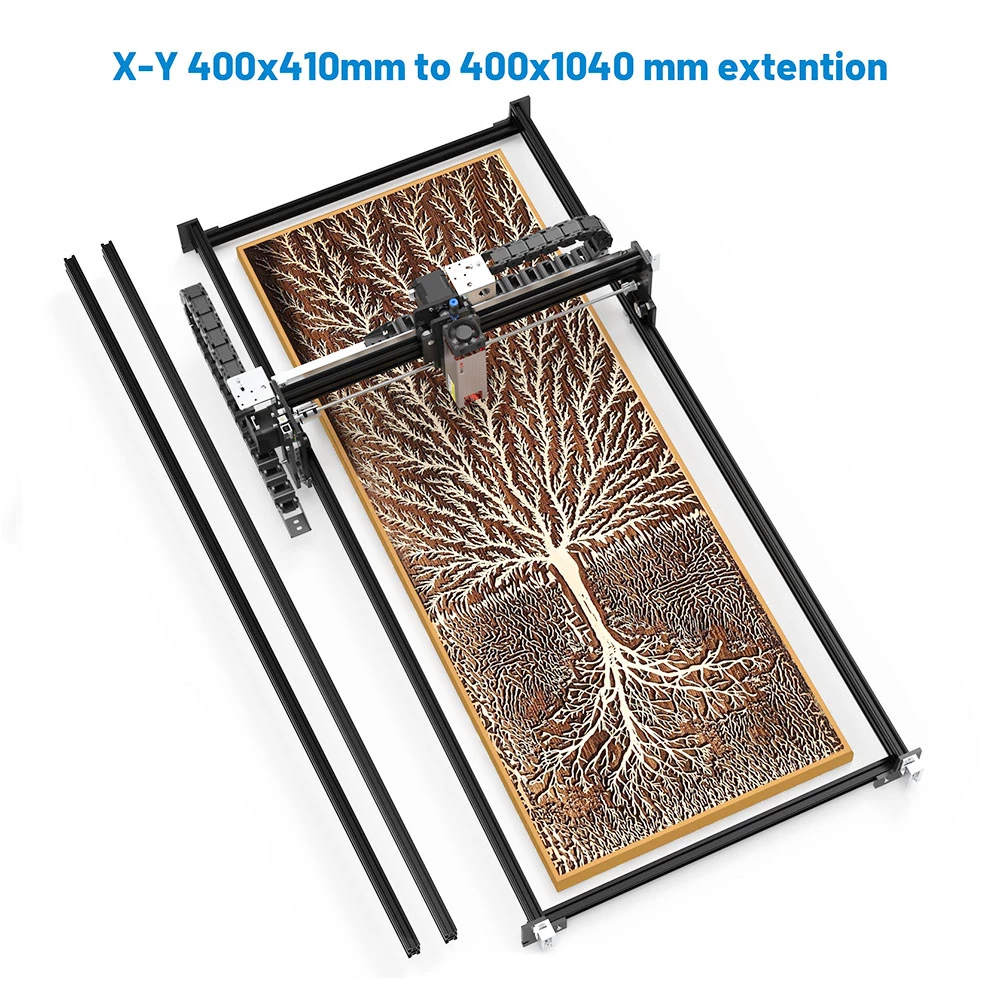

The 400x410mm area can meet most of the engraving needs, and it can extend to 400x1040mm area. NEJE 3 Pro laser cutter and engraver machine can engrave huge diameter cylinders by adding rotating attachments and raising the height of the machine body.
Wide Software Compatibility

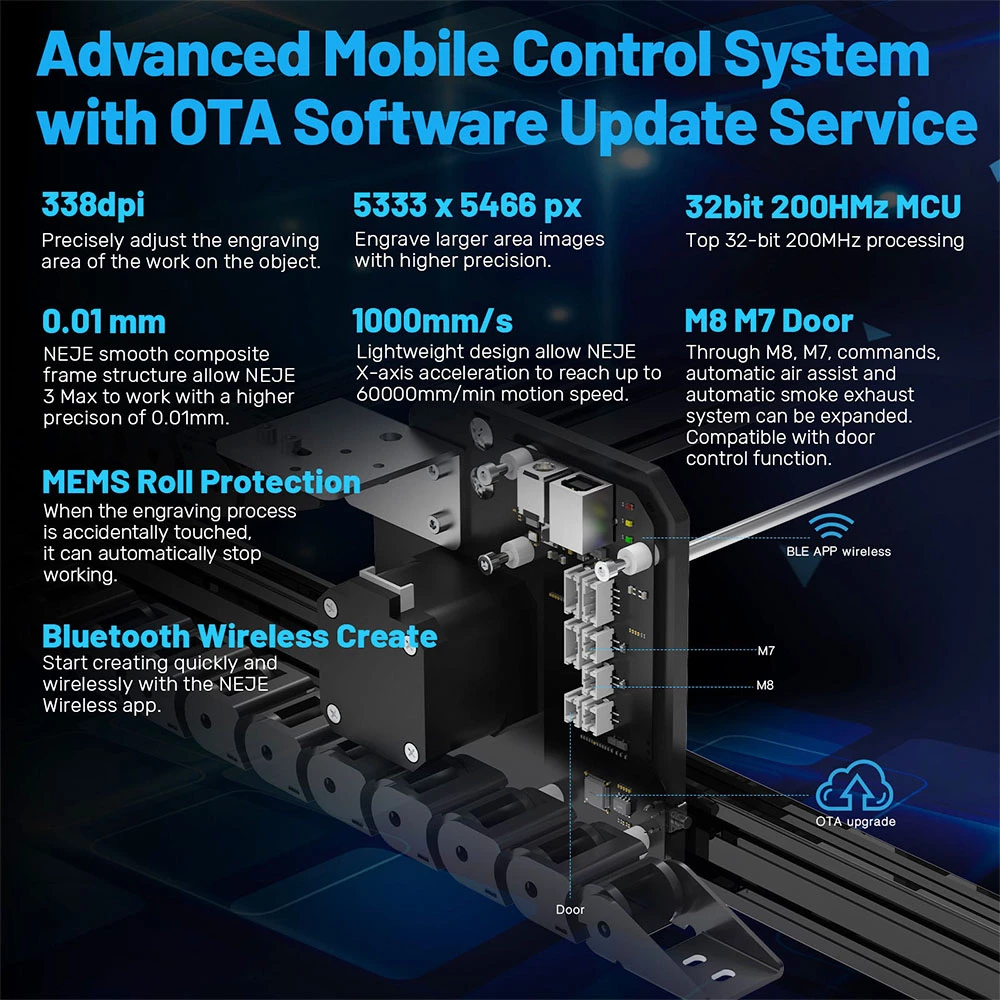

NEJE 3 series all support APP control, you can use the APP and other software to obtain top-level engraving works. NEJE 3 Pro with A30130 module has 32-bit 200Mhz MCU and provides OTA upgrade service. NEJE 3 Pro laser engraver supports Win 7/Win 8/Win 10, and also supports Android, iOS, iPadOS, macOS, HarmonyOS, and supports SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc. engraving file formats.
More Expansion Function

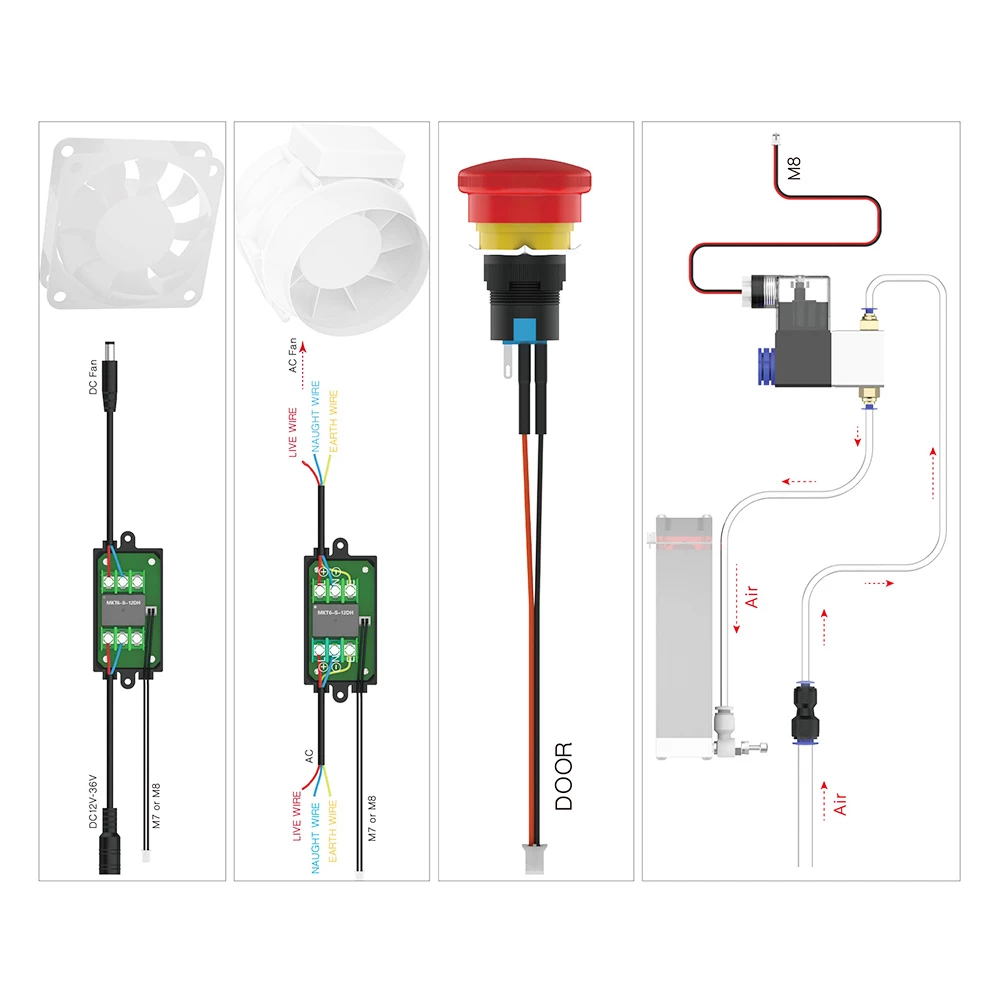

NEJE 3 Pro is equipped with automatic air assist, automatic smoke control components, and door expansion function, and is compatible with most NEJE series modules. The expansion function is perfectly suitable for lightburn, laserGRBL, and NEJE software APP, it can complete a variety of complex processes at one time, enough to build a perfect laser engraving and cutting system.
Solid and Easy Installation Structure Design
High precision all-aluminum alloy and PC material hybrid frame design makes the laser cutter and engraver machine more reliable and improves engraving accuracy. The entire engraving machine adopts a modular design, install 8 screws to get started, which is convenient for users to assemble, repair, replace and update machine parts.

Specification

General	Brand: NEJE Type: Laser Engraver Model: 3 Pro A30130 Color: Black
Specification	Frame Size (L – W -H): 550x540x200mm Working Area (X – Y): 400x410mm, Extends to 400x1040mm Dot Pitch: 0.075mm, 338dpi Pixel: 5333 x 5466Pixel Drive Accuracy: 0.01mm Max Move Speed: X: 1000mm/s (with module 204g), Y: 750mm/s Frame Material: High precision All-aluminum alloy and PC material hybrid frame Structure Technology: Y-axis fit adjustable design, X-axis stress fit assembly Structure Feature: Fit, High precision, stable, smooth, no oil, easy maintenance, long life Vertical Carving: Yes (45 degrees) Motor Size: Y: 42 x 42 x 40mm, X: 42 x 42 x 34mm Motor Drive Current: 0.9A Module Height Adjuster: Yes Home: Rear Left Origin: Front Left Compatible Modules: B30635, N30820, N40630, N30610, A40630, A30130, A40640, F30130, E30130, E40. Rotary Jig: supports all stepper motor-driven jigs MCU: 32-bit 200Mhz MCU (Top 32-bit MCU) BLE APP Control: Yes MEMS Protection: Yes M7 Control: Yes (For building automatic smoke extraction systems) M8 Control: Yes (For building automatic air assist systems) Door Control: Yes (Emergency Suspension and Safety Door Control) Limit Switch: Yes ON/OFF Switch: Yes Input: DC 5.5 2.1, 12V 5A (Power Adapter) System: Win 7 / Win 8/ Win 10, Android, iOS, ipadOS, macOS, HarmonyOS. File Format Support: SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc. OTA Upgrade: Yes NEJE Win Software: Yes, It is recommended to open the NEJE software to update to the latest firmware for the first time use. Lightburn and LaserGRBL: Yes, improved low light function, added M8, M7, emergency stop extended automatic control, optimized GRBL interaction. Off-Line Working: Yes, In NEJE Win software and NEJE APP mode, when the image is transferred to the device, it can work independently from the computer or mobile phone Repeat Engraving: Yes, After the engraving or cutting is completed, the device will not lose the location information, if you are not satisfied with the work, you can continue to work. NEJE Android APP: Yes NEJE iPhone/iPad APP: Yes NEJE Cloud Gallery Service: Yes Software Download: Https://neje.wiki Module: NEJE A30130 Focus: 0.04×0.04mm Focus Method: fixed (about 10mm from the bottom ) Optical Power: CW 5.5W+, Pulse 7.5W Wavelength: 450nm Weight: 204g Module Size: 30x30x130 mm Input: DC 12V 3A Interface: 4pin PH2.0 Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 3 Plus, NEJE 2s Max, NEJE 2s Plus, etc. Power Control: PWM Power Modulation Fan: double ball high life fan Drive: NEJE Smart Quiet Drive, Built-in static elimination technology. Surge Protection: Yes Smart Feedback: Yes Temperature Feedback: Yes Temperature Control: 45 Celsius Air Pump: 0.5-1.5mpa clean air Air Interface: 4mm PVC trachea Replaceable Lens Design: Yes
Weight & Size	Package Weight: 4kg Package Size(L x W x H): 59x24x22cm
Package Contents	1 x NEJE 3 Pro Laser Engraver (8 screws are needed to complete the assembly) 1 x A30130 Laser Module with Air Assist Kits (Built-in air assist) 1 x 12V 5A Standard Certified Power Adapter 1 x USB Cable 1 x Goggles 1 x Crawler 1 x 12V Valve Control Kit (less than 1.5mpa) 1 x 12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W) 1 x Door Control Kit 1 x Screw Nut Wrench Screwdriver Belt Installation Package 1 x Test Material Package 1 x Quality Card 1 x User Manual
