Best deal 🔔 NEJE 3 MAX 10W Laser Engraver Cutter, A40640 Laser Module, 0.04*0.06mm Compressed Spot, Built-in Air Assist, NEJE WIN Software, Android App Control, with Metal Nozzle Module Radiator, Engraving Size 460*810mm, Expandable to 810*1030mm 🛒

Highlights

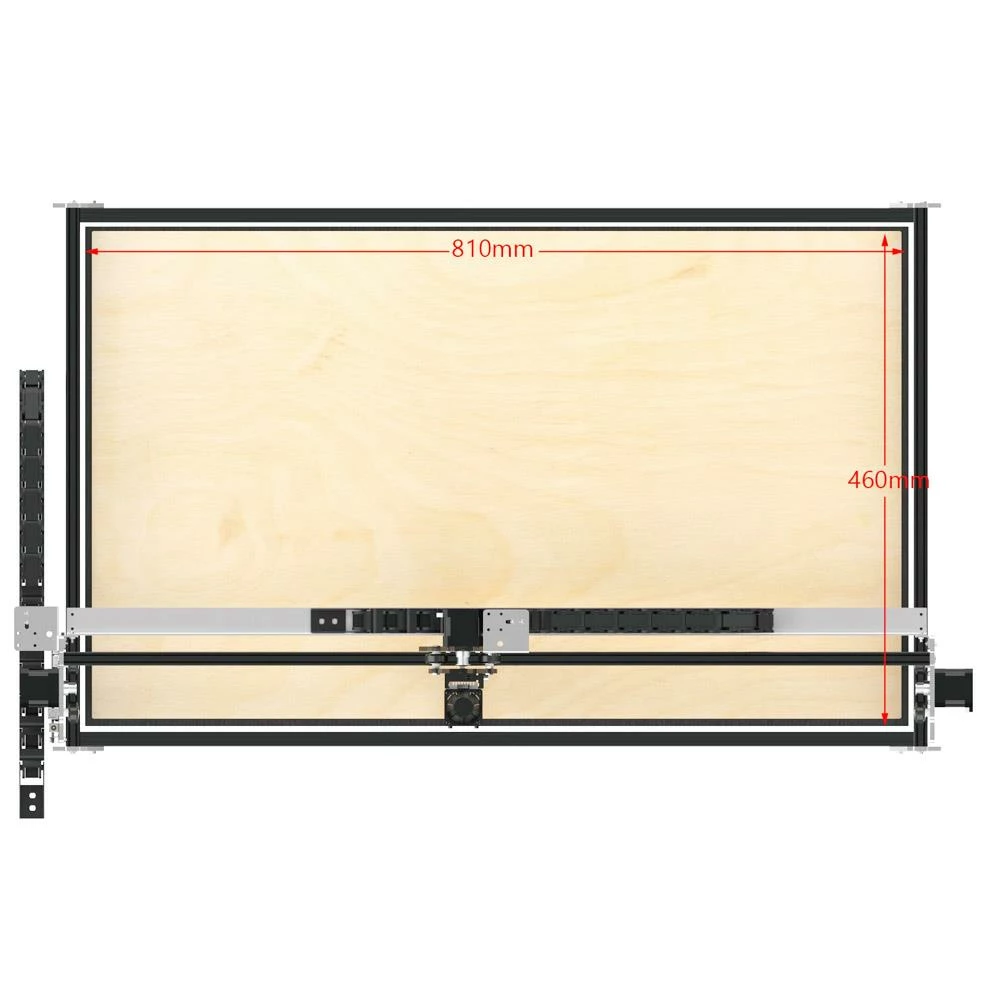

Large Engraving Area
810 x 460 mm, 6133 x 10800 px, Engraving accuracy: 0.075mm Dot pitch, 339 dot/inch. The whole machine is tested and shipped, and only 6 screws are required to complete the installation.

A40640 Advanced Laser Module
The laser beam is formed by combining two high-power laser diodes and adopts FAC technology. The minimum focus point reaches 0.04×0.04mm(A40640 module). Support NEJE advanced laser module, Built-in fast intelligent drive, temperature feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use.

More Materials and More Clear
Wood, MDF, leather, paper, cotton, etc. are all supported, 8mm plywood only needs to be cut once with air assist, and the cut is very clean. Direct engraving of stainless steel. Glass, transparent acrylic, and other materials can be engraved in a certain way.

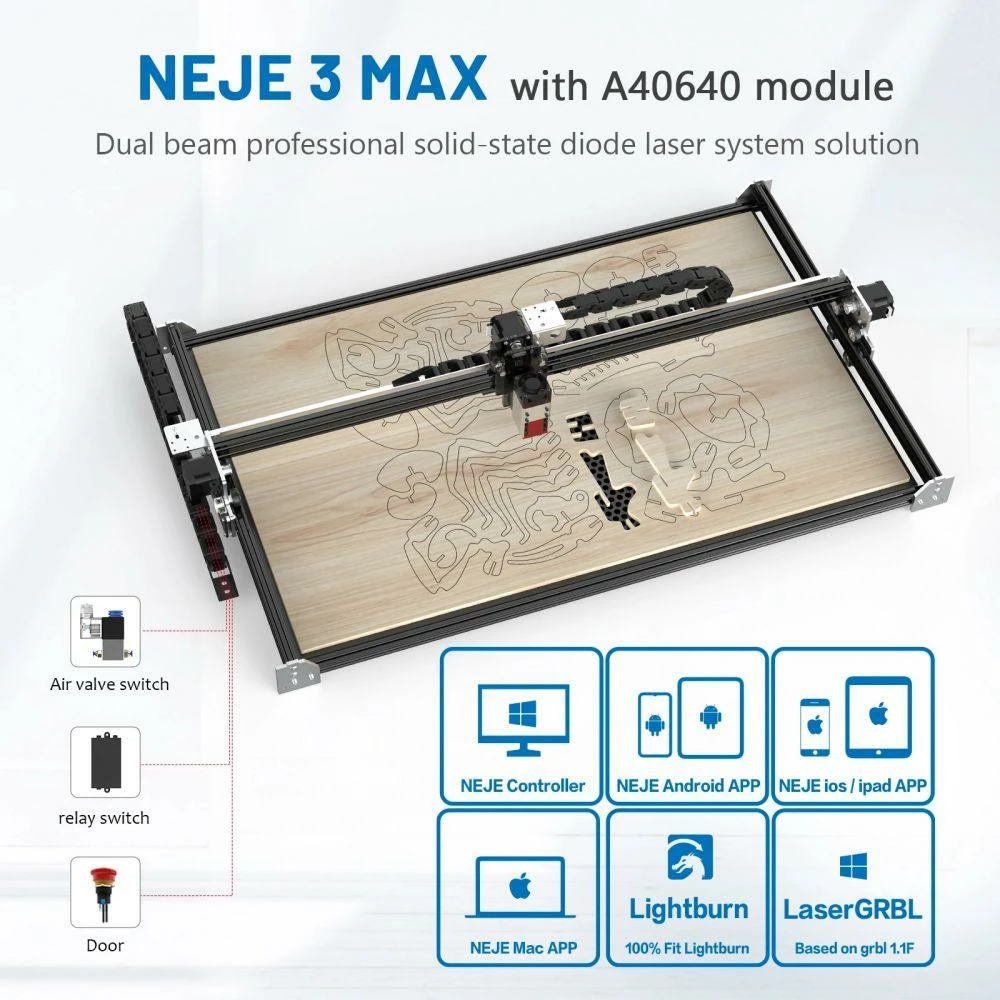

Portable Professional Control Software

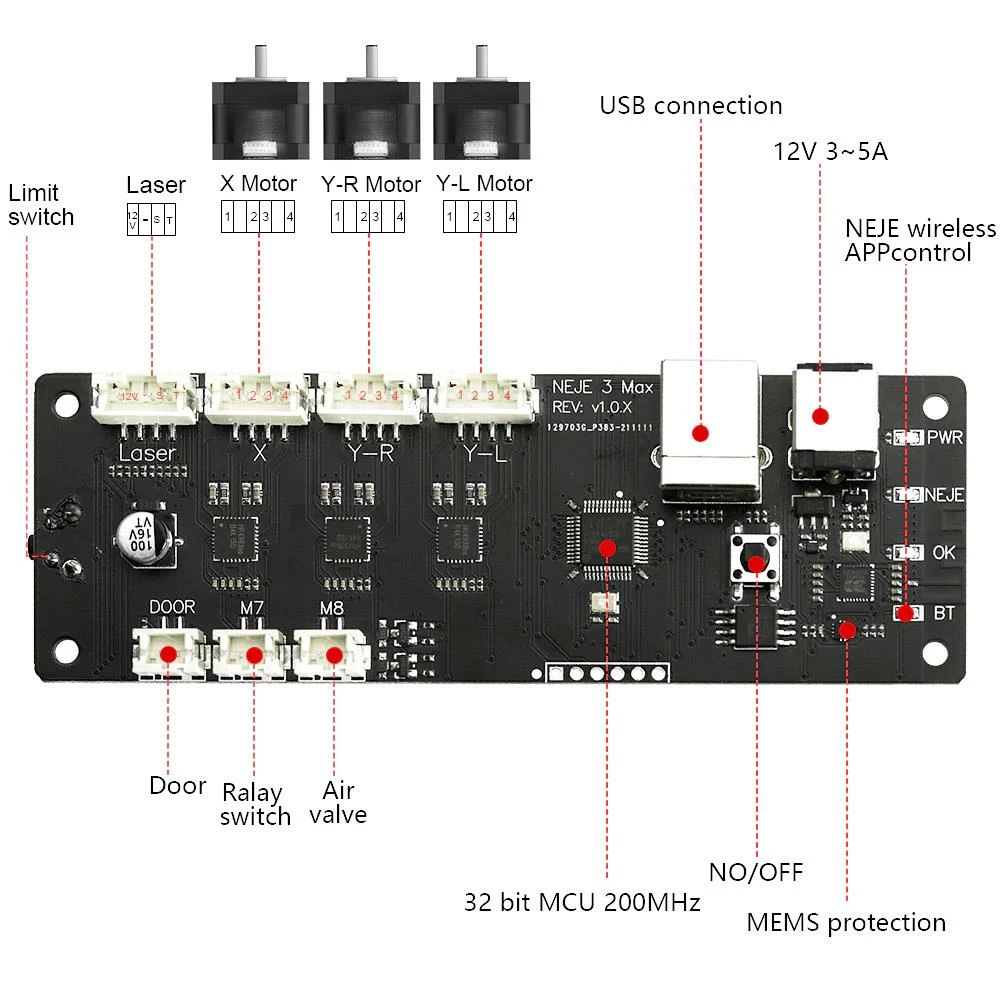

The 32-bit control system, the fastest speed reaches 150000mm/min, supports LaserGRBL, Lightburn, NEJE software, and NEJE APP (Android, iOS, iPad, macOS).

Specification

General	Brand: NEJE Type: Laser Engraver Model: 3 MAX A40640 Color: Black
Specification	Speed of the Fan: 10600RPM (Double ball bearing) Interface: PH2.0 4Pin Drive Design: Built-in Input:12V 4A Optical Power:10W Wavelength:450nm Number of Diodes: 2 Light Source: 2*LD+C-Lens Min Focus Spot Size: 0.04*0.04mm Temperature Sensing: Yes Power Adjustment Method: PWM duty cycle PWM Input: 3.3-12V. 0-20KHz Continuously Working(CW): Unlimited Fan Speed Control: Yes Light Feedback: Yes Max Cutting & Carving Depth:18mm Cutting Speed (plywood 3mm, with air assist, clear edge): 420m/ min,100%power from 1 pass Brushed Stainless Steel: Yes Mirror Stainless Steel: Yes
Weight & Size	Product Weight: 2.04kg Package Weight: 6.2kg Product Size(L x W x H): 40x50x60cm Package Size(L x W x H): 99x40x19cm
Package Contents	1 x NEJE 3 Max Machine 1 x A40640 Laser Module with air Assist Kits 1 x 12V 5A standard certified power adapter 1 x Metal Nozzle 1 x Belt Adjuster 1 x H20 Focus Adjuster 1 x Module Radiator 1 x Goggles 1 x L-shaped Crawler Aluminum Profile 2 x Crawler 1 x 12V Valve Control Kit (less than 1.5mpa) 1 x 12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W) 1 x Door Control Kit (The length of the control line is 1 meter) 1 x Screw Nut Wrench Screwdriver Belt Installation Package 1 x Test Material Package 1 x USB Cable + Manual + Quality Card
