Hot Sale ⌛ EASUN POWER 5000W Hybrid Solar Inverter, 48V230VACGrid Tied, 80A MPPT Solar Controller, 450V DC Hight PV Input, Pure Sine Wave Off Grid Inverter, Parallel Up to 9 Units ⭐

Original price was: $471.00.Current price is: $94.99.

SKU: 517413 Categories: Power Inverters, Professional Instruments & Tools Tag: EASUN POWER

Buy quality, buy with us.
Free 1 year warranty period
Service with a smile, always online.
Quick responses, top-notch service.

Description
Reviews (0)

Highlights

Multi-function Solar Inverter

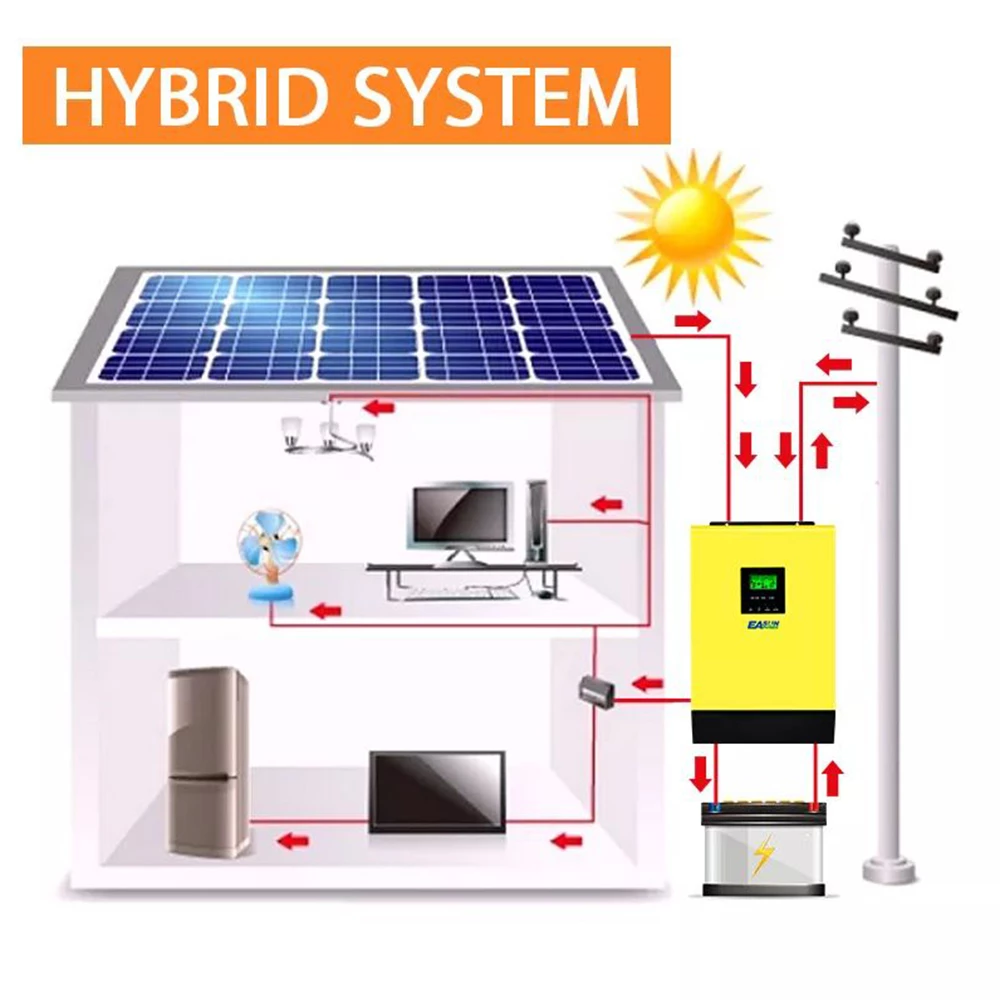

5000W hybrid solar inverter has a built-in 80A MPPT charge controller (max 5kw PV array) and 450V DC high PV input. It is a new all-in-one hybrid grid-tie/off-grid solar inverter that is for 48V systems.

Supports 9 Units of Parallel
This hybrid solar power inverter supports up to 9 units of parallel and batteryless operation, its total system max charging is 80A.

Multiple Features
Features bundled monitoring and setting software, and is able to use AC grid or generator power. Supports 50hz or 60hz (program adjustable), grid feedback when there is excess energy, and the timer settings for AC charging and output are available. The USB interface is also available.

Easun Power 5000W Hybrid Solar Inverter, 48V230VACGrid Tied, 80A MPPT Solar Controller, 450V DC Hight PV Input, Pure Sine Wave Off Grid Inverter, Parallel Up to 9 Units

Specification

General	Brand: EASUN POWER Type: Hybrid Solar Power Inverter Model: BA-IGRID-SV-II-5KW Color: Yellow
Specification	Max. PV Array Power: 5000W Rated Output Power: 5000W Maximum PV Array Open Circuit Voltage: 450 V DC MPPT Range @ Operating Voltage: 120 VDC – 430 VDC MPP Tracker Number: 1 Grid-tie Operation Grid Output (AC): Nominal Output Voltage: 220/230/240 VAC Output Voltage Range: 184 – 264.5 VAC or 195.5 – 253 VAC (Selectable) Nominal Output Current: 21.7A Power Factor: > 0.99 Maximum Conversion Efficiency (DC/AC): 95% Off-grid, Hybrid Operation Grid Input: Acceptable Input Voltage Range: 90 – 280 VAC or 170 – 280 VAC Frequency Range: 50 Hz/60 Hz (Auto sensing) Maximum AC Input Current: 40A Battery Mode Output (AC): Nominal Output Voltage: 220/230/240 VAC Output Waveform: Pure sine wave Efficiency (DC to AC): 93% Battery & Charger: Nominal DC Voltage: 48 VDC Maximum Solar Charge Current: 80 A Maximum AC Charge Current: 80 A Maximum Charge Current: 80 A Interface Parallel Function: Yes, 9 units (Parallel kits are not included) Communication Ports: USB, RS-232, and dry contact Environment Humidity: 0 – 90% RH (Non-condensing) Operating Temperature: 0 to 50 Celsius
Weight & Size	Product Weight: 12kg Package Weight: 13kg Product Size(L x W x H): 12×29.5×46.8cm Package Size(L x W x H): 12×29.5×46.8cm
Package Contents	1 x Hybrid Solar Power Inverter 1 x Communication Cable 1 x User Manual
