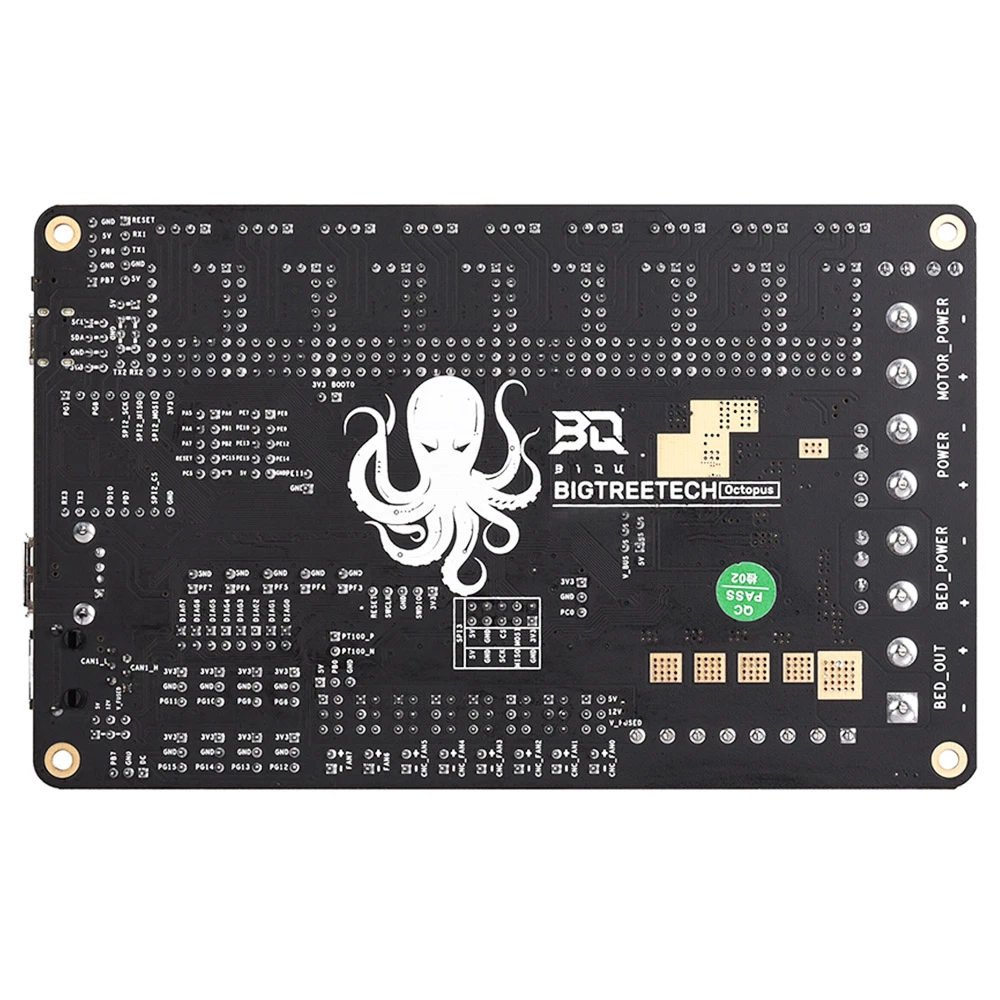

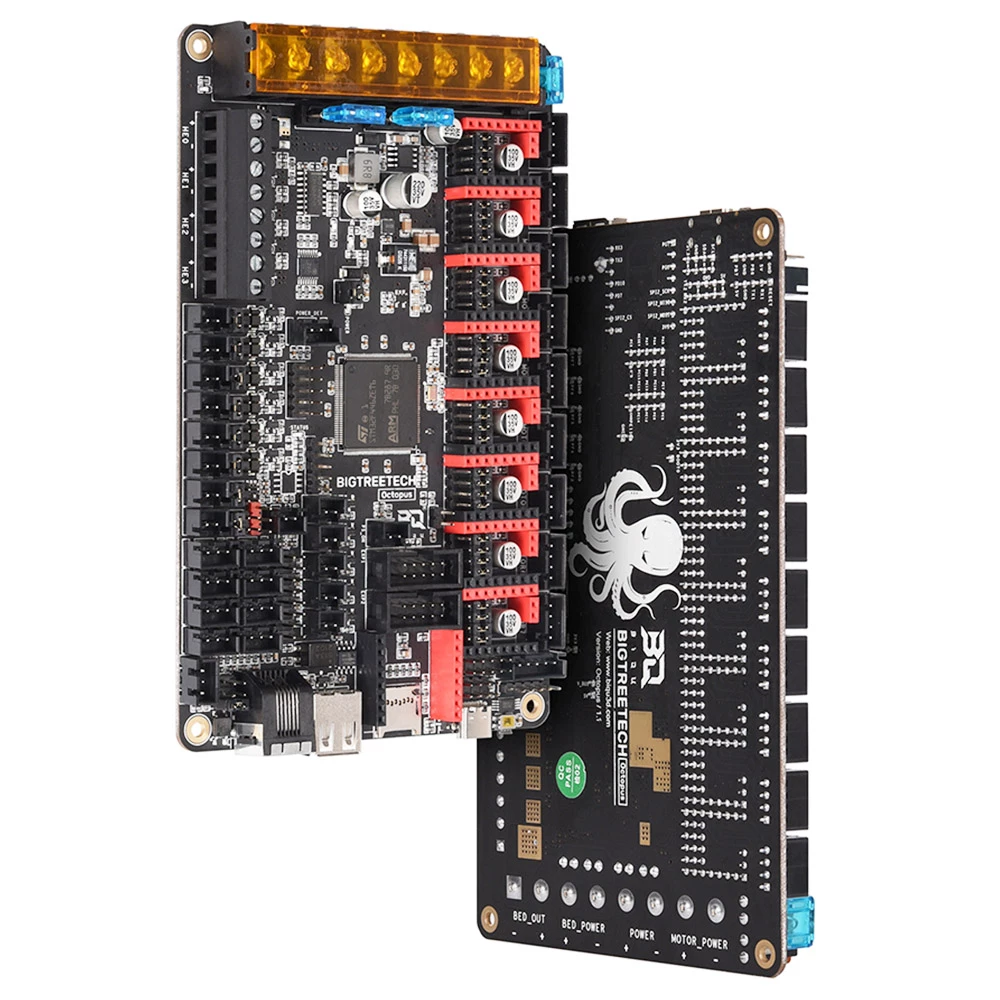

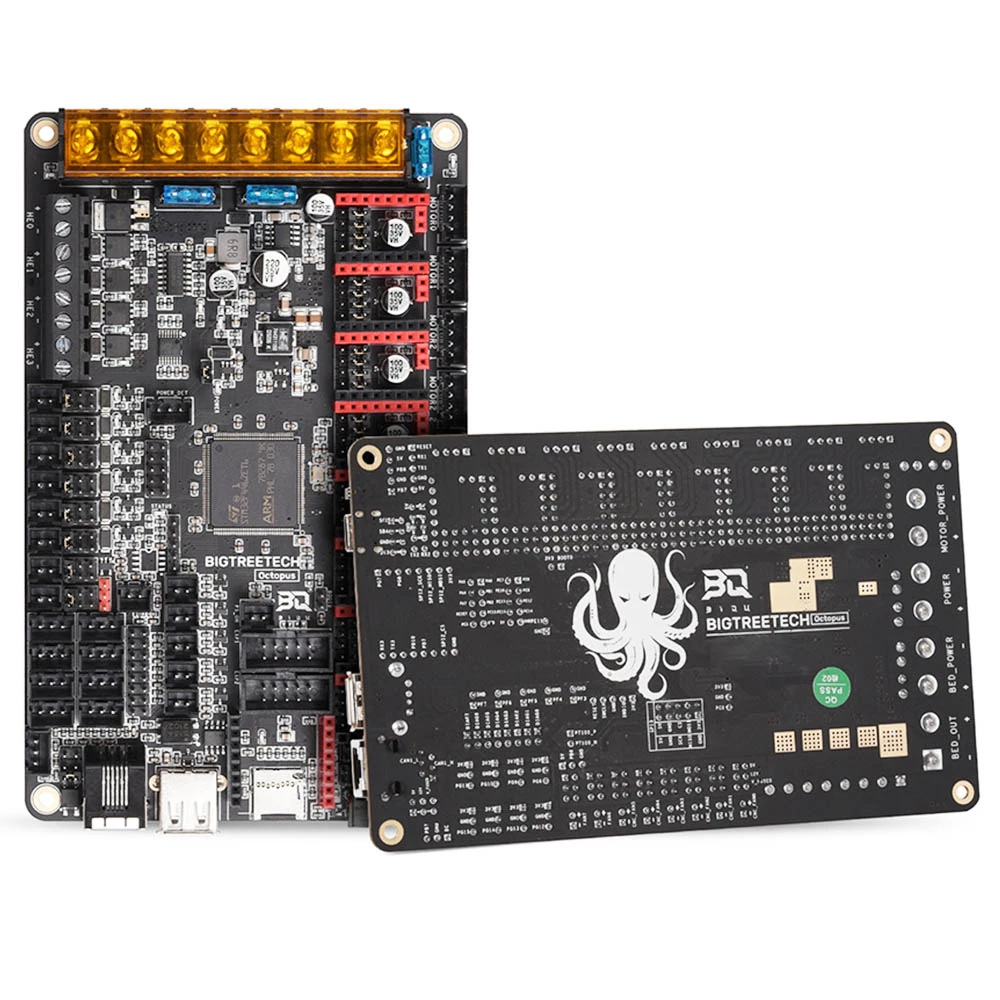

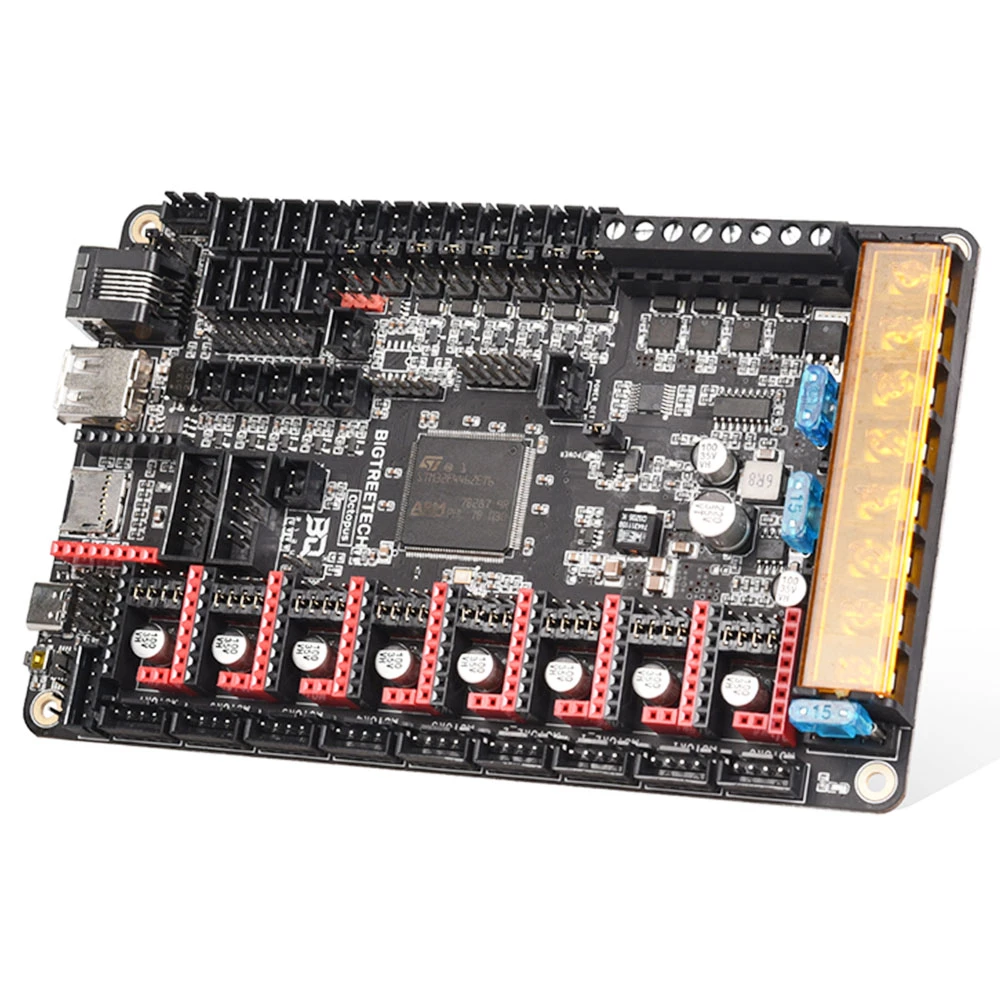

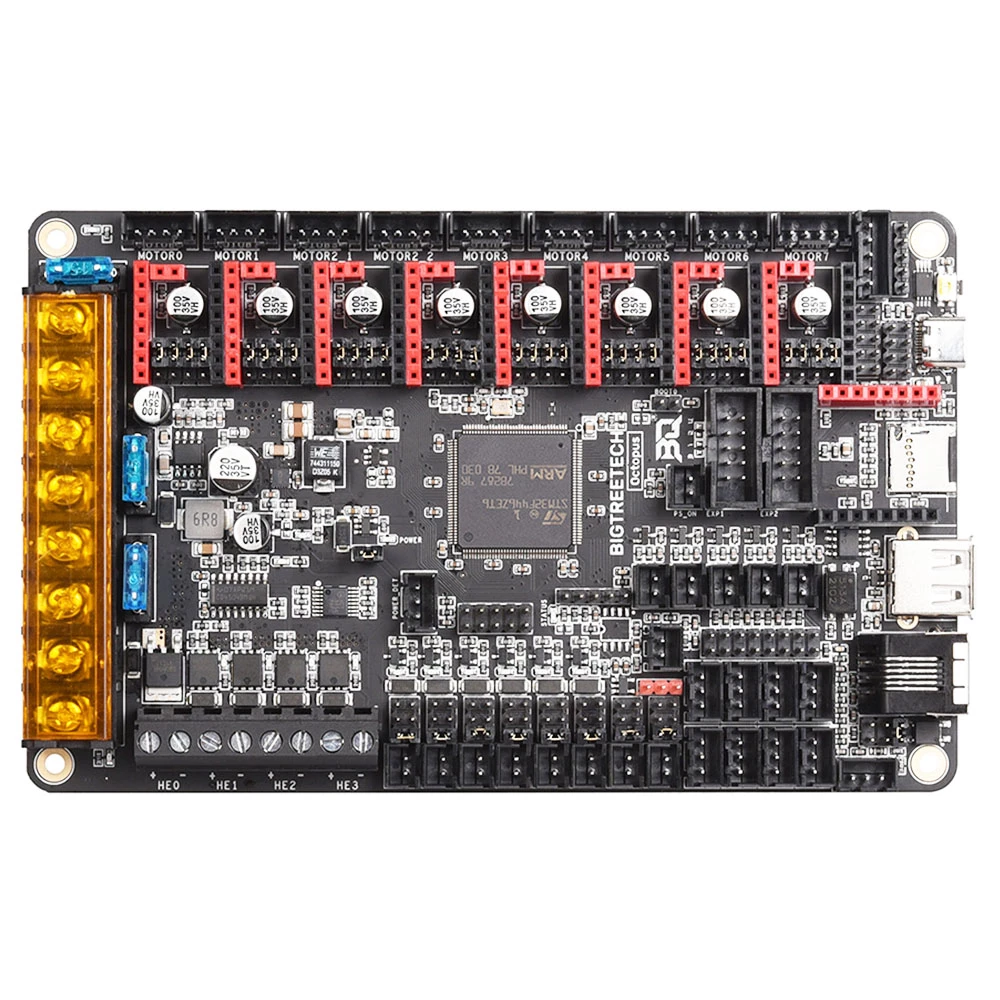

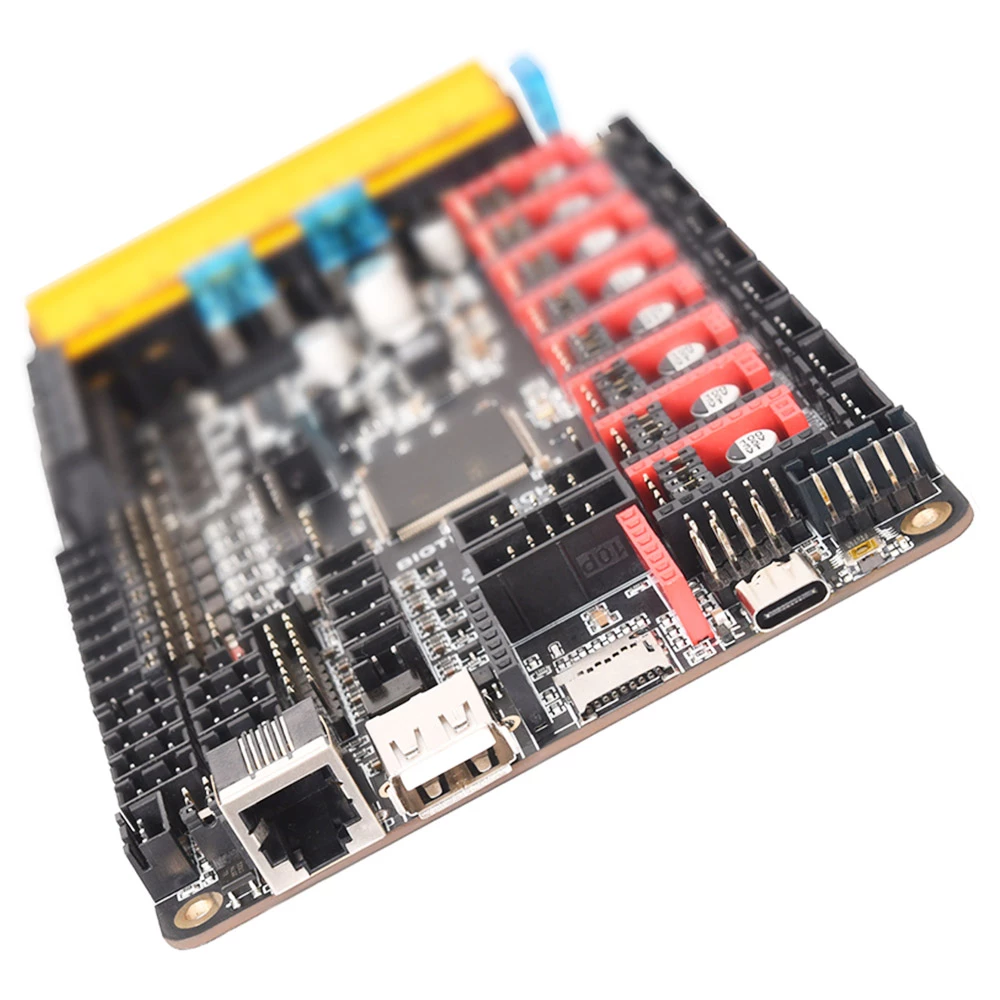

Flash Sale 🔥 BIGTREETECH Octopus V1.1 Control Board Mainboard 🧨

Highlights



Main Control Chip

Uses a 32-bit ARM Cortex-M4 series STM32F446ZET6 main control chip with a core frequency of 180MHz.

Strong DIY Support

This motherboard supports up to 8 stepper drivers with 9 stepper driver outputs in total; And up to 6 PWM fans and 2 always-on fans with the ability to individually select the voltage rail that will drive each fan. Select from Vin, 12V, or 5V.

Motherboard Expansion Function

Support BLTouch, locked-rotor detection, shut down after printing, resume printing after a power failure, CAN bus, U disk function, IIC expansion; at the same time reserved WIFI interface, PT100 thermistor interface (optional), dual Z-axis printer.

TMC2209 Driver Features

The TMC2209 stepper driver is not easy to lose steps and is in an ultra-quiet mode; the module has a large area of heat dissipation pad, which can reduce the temperature of the driver when it is working; the module supports three modes: STEP / DIR and UART.

TMC2209 Driver Mode

TMC Motor drivers can be used in SPI or UART mode by simply adjusting the onboard jumpers beneath each motor driver. Additionally, you can connect or disconnect the TMC DIAG pin using an onboard jumper allowing you to use hard end-stops or sensorless homing without the need to cut any pins.



Specification

General	Brand: BIGTREETECH Type: Mainboard Model: Octopus V1.1
Specification	Mounting size: 150*90mm Microprocessor: ARM 32-bit CortexTM-M4 CPU Input voltage: DC24V Motor driver: pluggable drivers Drive working mode support: SPI, UART, STEP/DIR Firmware support: Marlin, Klipper Motor driver sockets: MOTOR0, MOTOR1, MOTOR2_1, MOTOR2_2, MOTOR3, MOTOR4, MOTOR5, MOTOR6, MOTOR7 Temperature sensor interfaces: TB, T0, T1, T2, T3 Display interfaces: BIGTREETECH TFT touch screen, LCD12864,LCD2004, etc.
Weight & Size	Package Weight: 0.316kg Product Size: 160x100mm Package Size(L x W x H): 18.8×12.8×4.2cm
Package Contents	1 x Mainboard
