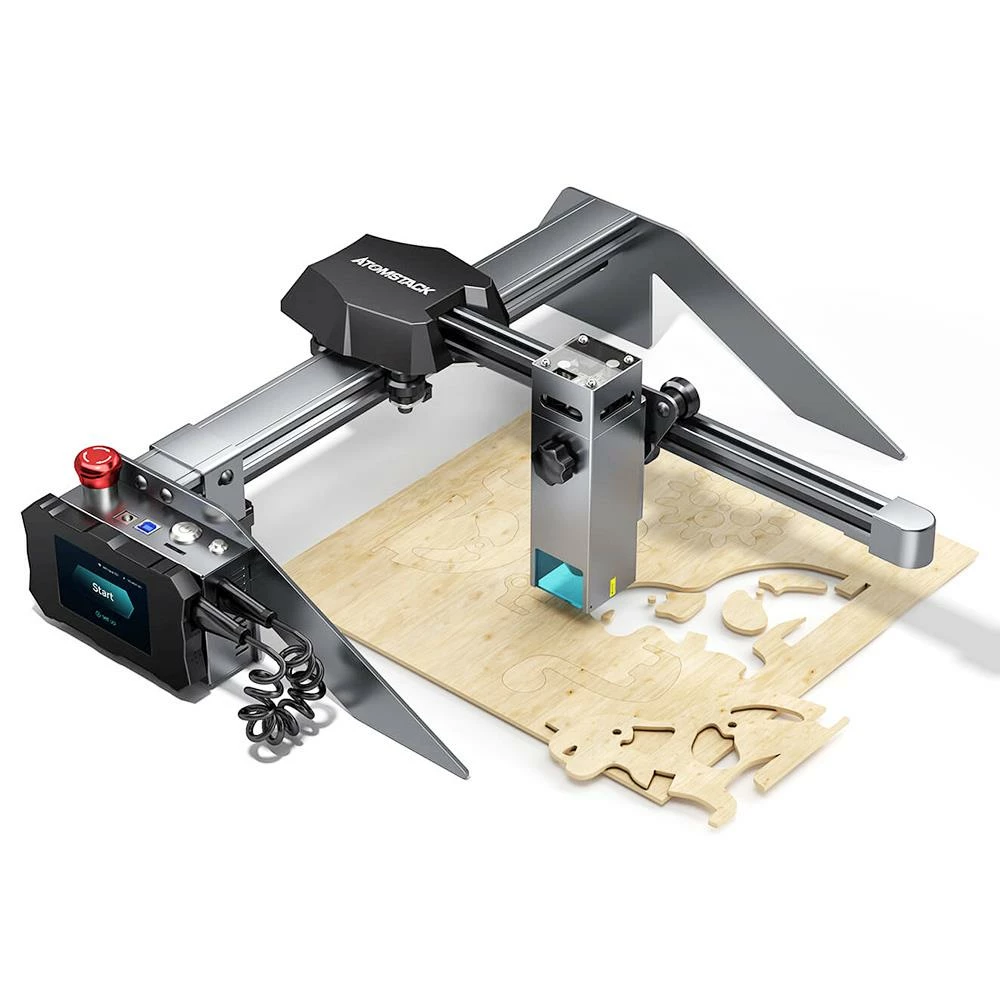

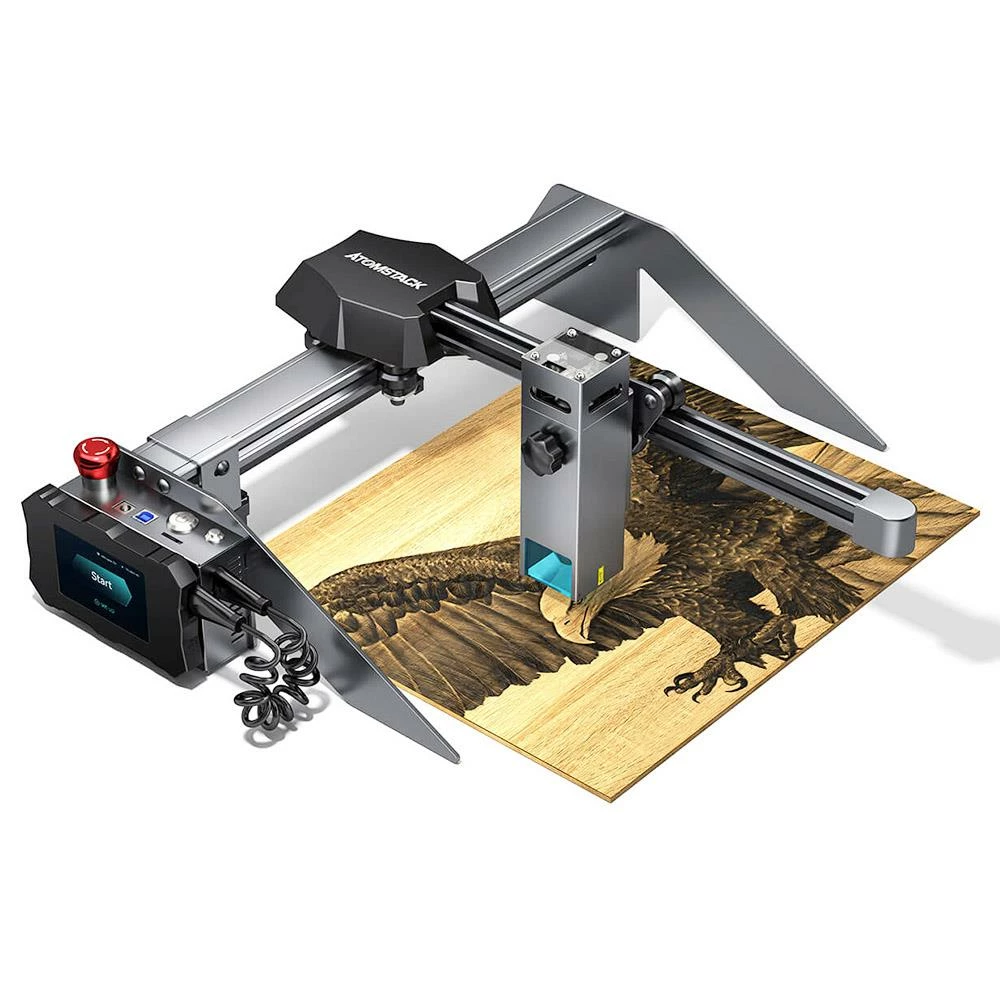

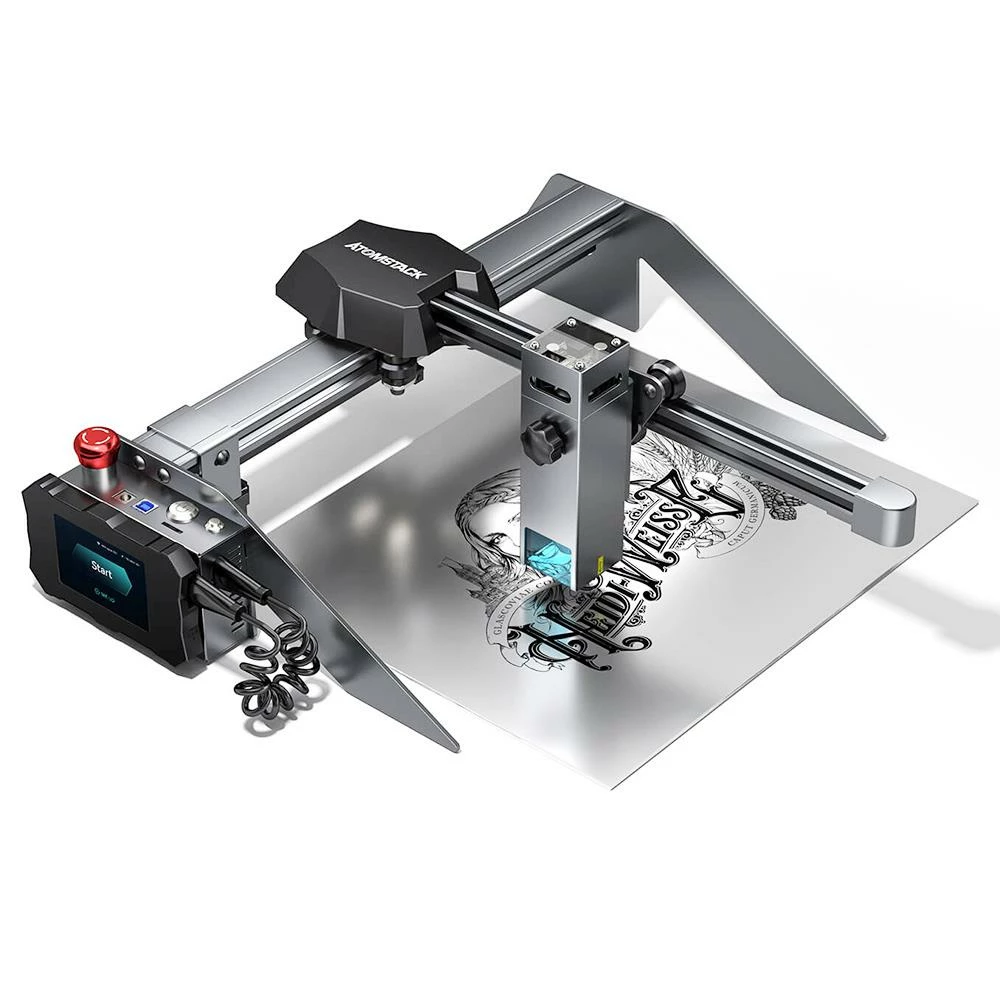

Budget 💯 ATOMSTACK P9 M50 10W Laser Engraver Cutter, 50W Electric Power, Focus Free, Offline Engraving, Double Compression Spot, Cut 20mm Thick Wood 15mm Thick Acrylic, 220*250mm 🔥

Highlights

The New Filter Panoramic Glass Eye Protection Design

The panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you do not need to wear goggles, you can also watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles.

Robust and Easy-to-Install Structure Design

The all-aluminum alloy anodized structure design makes the machine more durable and improves the accuracy of engraving. The portable all-metal structure, 85% pre-assembly, can be installed in 5 minutes.

Upgraded High-Performance Fixed-Focus Laser

No need to adjust the focus before engraving; The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combines precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

Wide Compatibility

The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAcs system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

Precise Scale Lines Axis

There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

Upgraded Dual Compression Spot Coupling Technology

The ultra-fine laser focus area is reduced to 0.06*0.06mm, the high-density laser can easily cut 20mm thick wood, 15mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO₂ laser engraving machine.

Integral Screw Rod

The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

New Laser with Knob

It is more convenient and quick to adjust the height of the laser.

Support Offline Engraving

P9 M50 configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.

The laser sintering temperature is up to 1200°C

Emergency Stop Button

In the event of an unexpected situation, stop the machine at any time to make the engraving safer

Specification

General	Brand: ATOMSTACK Type:  Laser Engraving Machine Model: P9 M50 Color: Black
Specification	Recommend Print Size: 220x250mm Carving Objects: Wood, Bamboo, Cardboard, Plastic, Leather, PCB Board, Aluminum Oxide, Non-reflective, Electroplating Layer and Paint Surface Layer Metal, 304 Mirror Stainless Steel, Glass, Ceramics, Cotton Cloth, Slate; Cutting Objects: Cardboard, Non-woven Fabric, Wood Board, Acrylic, Some Thin Plastic Board, Sponge; Electric Power: 50W Laser Output Power: 10-11W Wave Length: 445 +/- 5nm Engraving Accuracy: 0.01mm Focusing Method: Fixed Focus Laser, No Need to Focus Laser Protective Cover: Protect the user’s eyes and prevent pets from grabbing the laser spot. Operating Software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system. Input Format: NC, BMP, JPG, PNG, DXF, etc. Data Transmission Method: USB Connection/SD Card Input Voltage: AC100-240V, 50/60Hz Output Voltage: DC12V, 5A
Weight & Size	Product Weight: 3.5kg Package Weight: 4.3kg Product Size(L x W x H): 45.8×44.5×13.9cm Package Size(L x W x H): 48.1×26.7×14.5cm
Package Contents	1 x Screw parts (Step2/3/4/5) 1 x Dust-free cloth 1 x Tool kit 1 x Fixed focus film 3 x Acrylic sheet 3 x Wood chips 1 x Card reader 5 x Cable tie 1 x Accessories package 1 x Display assembly 1 x Display cable 1 x Power adapter 1 x Power cable 1 x Data line 1 x Metal cutting pad 1 x Laser assembly 1 x X-axis assembly 1 x Y-axis assembly 2 x Support tripod 4 x Assembly block 1 x Desiccant 1 x User Manual
