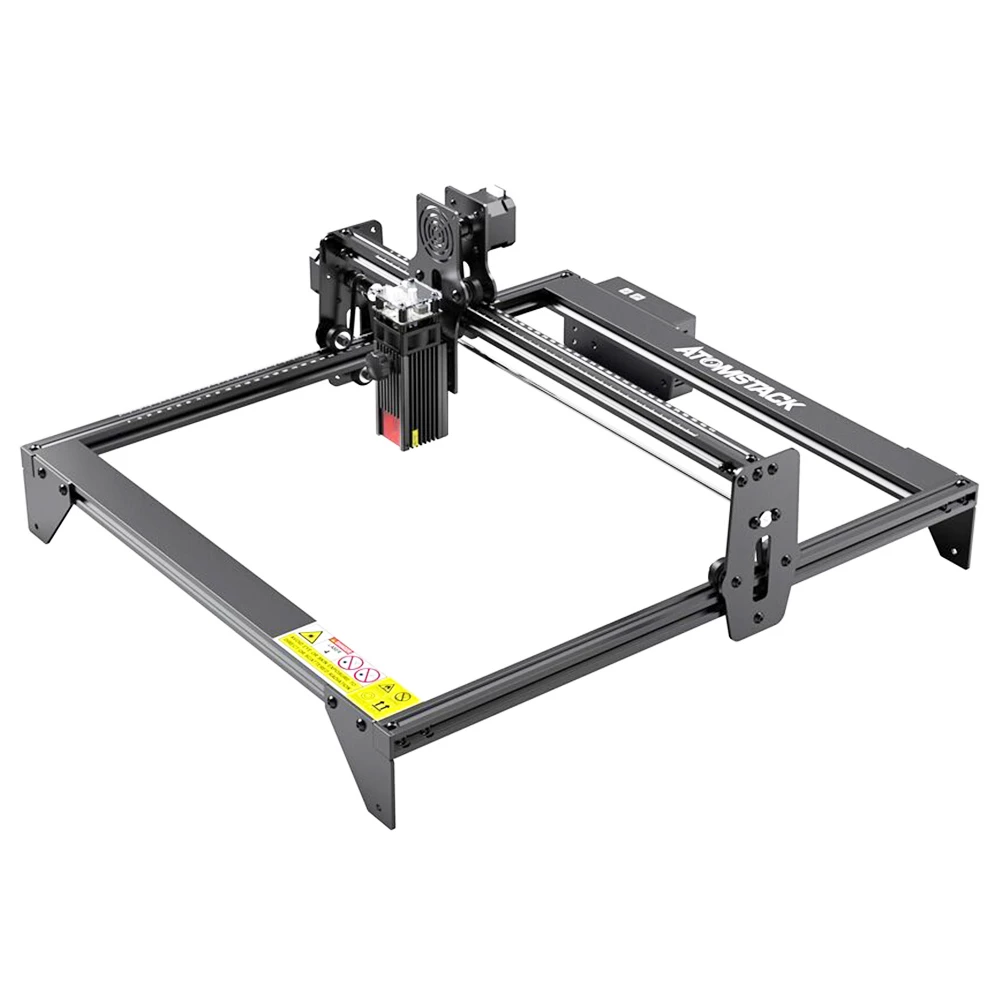

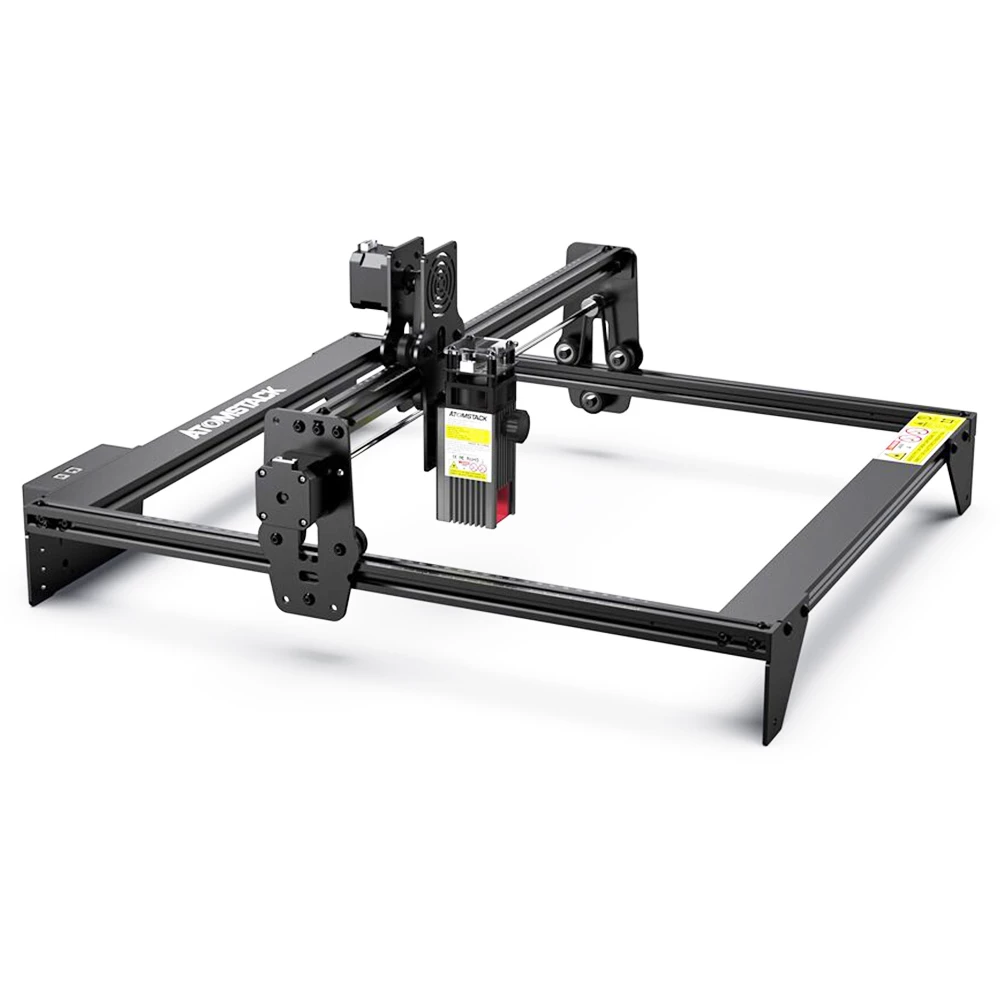

Promo 🎁 ATOMSTACK A5 M40 5.5W Laser Engraver, 0.16mm*0.19mm Compressed Spot, o.1mm Accuracy, Engraving Area 410mm*400mm 🎁



Highlights

New Eye Protection Design:

The laser protective cover perfectly protects your eyes, filters UV light for 97%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

Solid and Easy Installation Structure Design:

The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

Upgraded High-Performance Fixed-Focus Laser:

no need to adjust the focus before engraving; The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combines precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

Wide Compatibility:

The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support IOS system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

Precise Scale Lines Axis:

There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

Ultra-Fine Compression Laser:

The laser power is 5~5.5W, and the ultra-fine laser focus area is reduced to 0.08*0.08mm. The high-density laser can easily cut 6mm thick wood and black acrylic; it can directly engrave smooth stainless steel metal and ceramics.

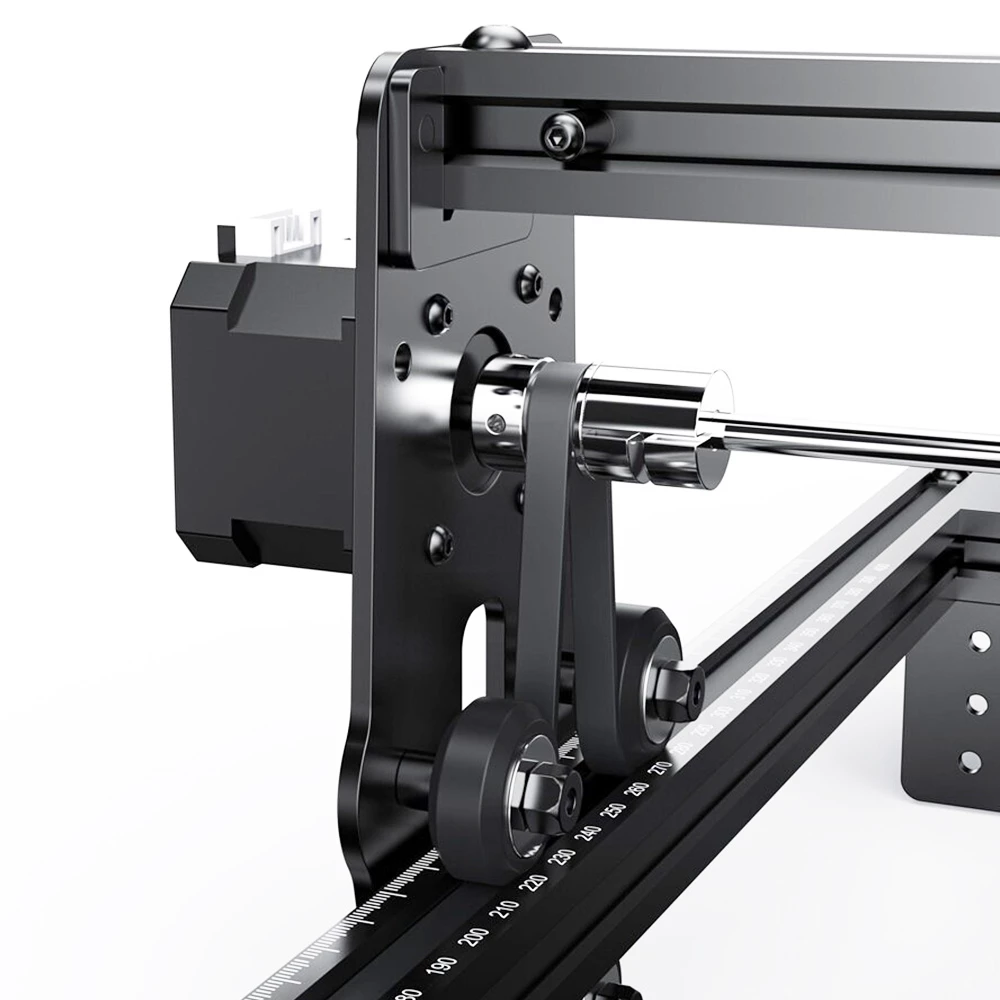

Integral Screw Rod:

The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

New Laser with Knob:

It is more convenient and quick to adjust the height of the laser.



Specification

General	Brand: ATOMSTACK Type: Laser Engraving Machine Model:  A5 M40 Color: Black
Specification	Print Size: Recommend Print Size 410x400mm Carving Objects: All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, ceramics (Should be painted black) Cutting Objects: Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board. Laser Power: 40W Laser Output Power: 5W-5.5W Wave Length: 445 ± 5nm Engraving Accuracy: 0.01mm Focusing Method: Fixed focus laser, no need to focus Laser Protective Cover: Protect the user’s eyes and prevent pets from grabbing the laser spot. Operating Software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system. Input Format: NC, BMP, JPG, PNG, DXF, etc. Data Transmission Method: USB connection. Input Voltage: AC100-240V, 50/60Hz Output Voltage: DC12V, 5A Laser Spot: Compressed spot 0.08mm Height Adjustment: Manual knob Switch Cable Line Yes Certification: CE FCC RoHS FDA Weee
Weight & Size	Product Weight: 3.426kg Package Weight: 5.072kg Product Size(L x W x H): 570x600x270mm Package Size(L x W x H): 620x345x130mm
Package Contents	A5 M40 LASER ENGRAVER PACKAGE: 1 x X-axis assembly 2 x Section 57CM 2 x Section 48CM 1 x  Control box 3 x  Support legs 1 x  Goggles 1 x Laser 1 x  24V2A power adapter 1 x  Power switch line 1 x USB cable 1 x  M5 wrench 10 x  Rolled belt 3 x  Small wood 1 x  Focal length film 1 x  M3 wrench 1 x  Marker 1 x  Brush 3 x  Small acrylic 1 x Stainless steel backing plate for cutting 1 x User Manual
