Budget 🎉 ATOMSTACK A5 M30 5.5W Laser Engraver, 0.31*0.5mm Ultra-Fine Compressed Spot, Printing Size 410*400mm ⌛

Highlights

New eye protection design
The laser protective cover perfectly protects your eyes and filters UV light for 97%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

Solid and easy installation structure design
The all-aluminum alloy anodized structure design makes the machine more durable and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

Upgraded high-performance fixed-focus laser
no need to adjust the focus before engraving; The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, the new laser combines precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

Wide compatibility
The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support IOS system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

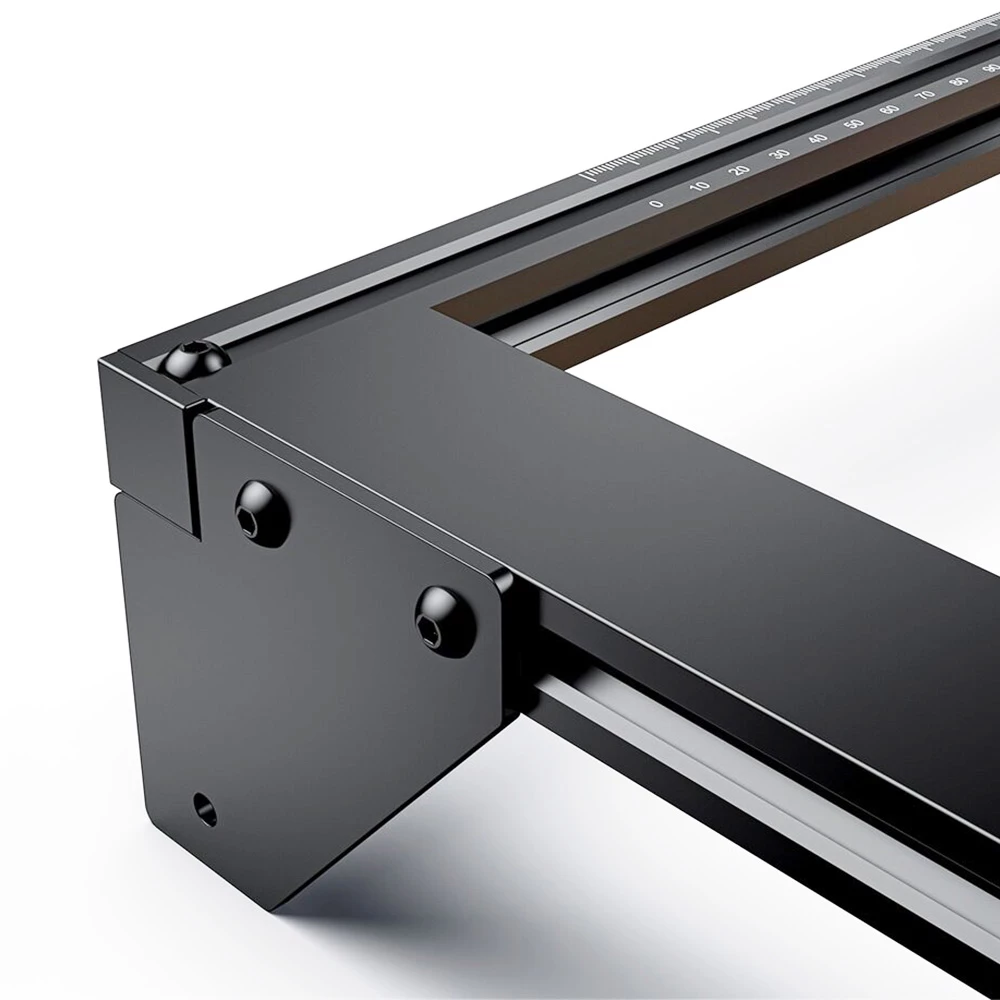

Precise scale lines axis
There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

Ultra-fine compression laser
The laser power is 5.0~5.5W, and the ultra-fine laser focus area is reduced to 0.16*0.19mm. The high-density laser can easily cut 6mm thick wood and black acrylic; it can directly engrave smooth stainless steel metal and ceramics.

Integral screw rod
The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

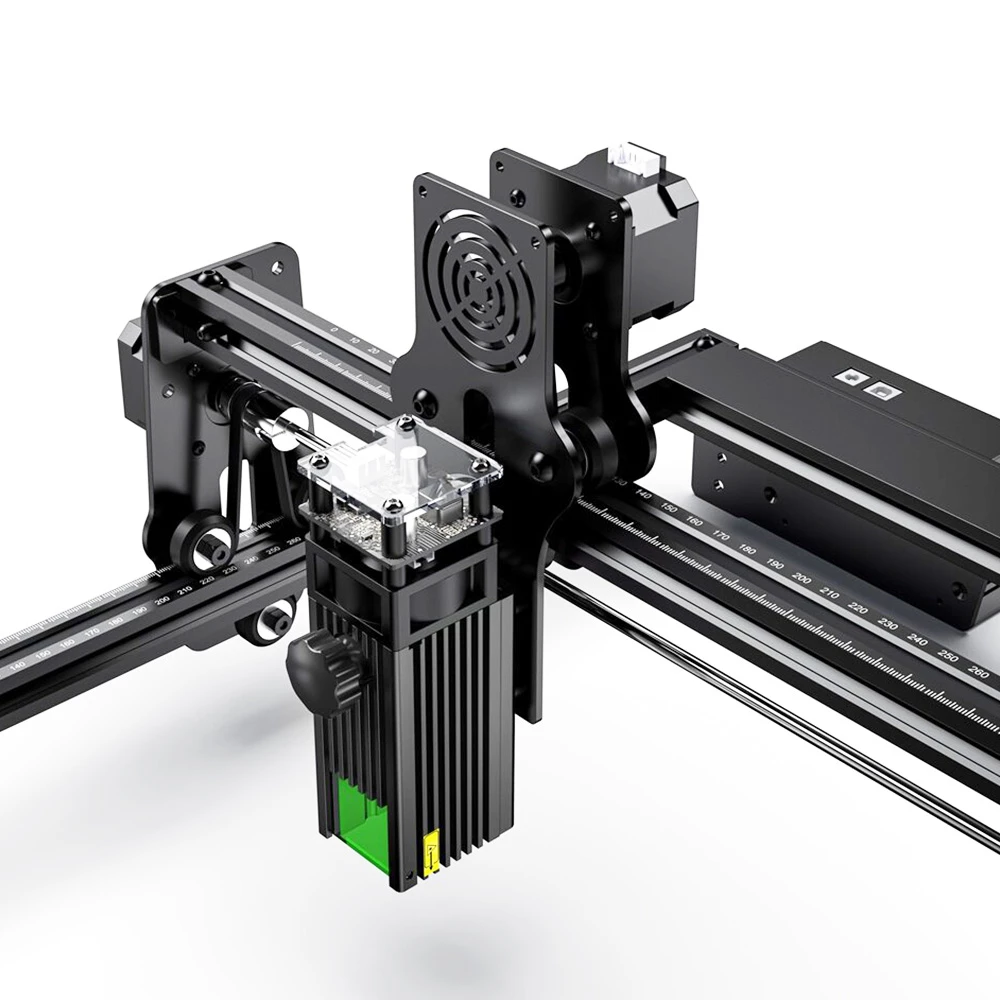

New laser with knob
It is more convenient and quick to adjust the height of the laser.



Specification

General	Brand: ATOMSTACK Type: Laser Engraver Model: A5 M30  Color: Black
Specification	Print Size:  410*400 mm Carving Objects: All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, Utility knife after blacking Cutting Objects: Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board. Laser power: 30W Laser output power: 5.0-5.5W Wave Length: 445 ± 5nm Engraving accuracy: 0.01mm Focusing method: Fixed focus laser, no need to focus Laser protective cover: Protect the user’s eyes and prevent pets from grabbing the laser spot. Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system. Input Format: NC, BMP, JPG, PNG, DXF, etc. Data transmission method: USB connection. Input Voltage: AC100-240V, 50/60Hz Output Voltage: DC12V, 5A
Weight & Size	Product Weight: 3.426kg Package Weight: 5.072kg Product Size(L x W x H): 570*600*270mm Package Size(L x W x H): 620*345*130mm
Package Contents	A5 LASER ENGRAVER PACKAGE 1* X-axis assembly 2* Section 57CM 2* Section 48CM 1* Control box 3* Support legs 1* Goggles 1* Laser 1* 24V2A power adapter 1* Power switch line 1* USB cable Step 1~5 INSTALLATION PACKAGE 1* M5 wrench 10* Rolled belt 3* Small wood 1* Focal length film 1* M3 wrench 1* Marker 1* Brush 3* Small acrylic 1* Stainless steel backing plate for cutting
